Android虛拟化引擎VirtualApp探究

介紹

首先需要說明的是，VirtualApp并不是前些陣子滴滴開源的插件化架構VirtualApk。

是一個更加黑科技的東西，他可以建立一個虛拟空間，你可以在虛拟空間内任意的安裝、啟動和解除安裝APK，這一切都與外部隔離，如同一個沙盒，APK無需在外部安裝。

小試牛刀

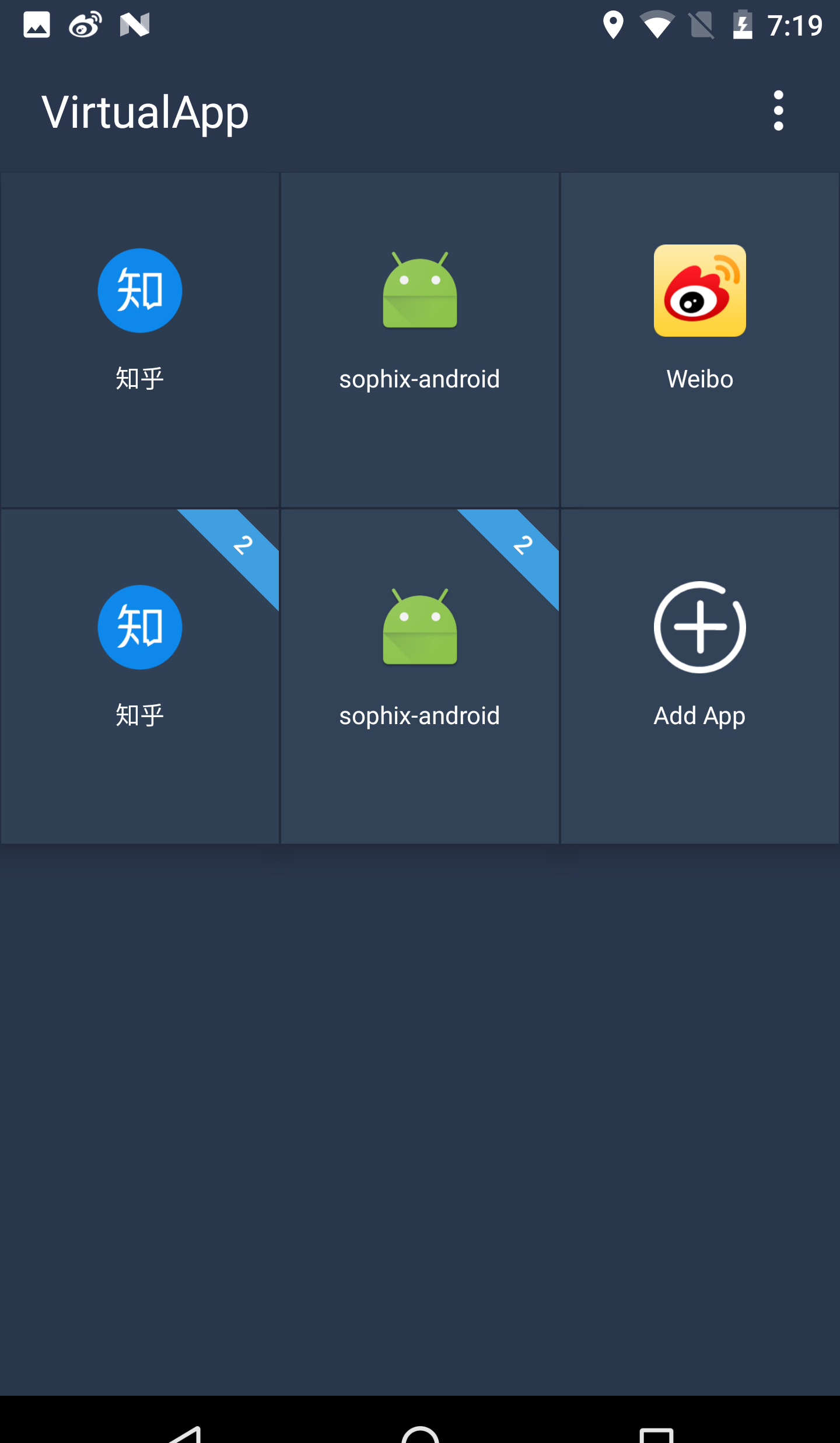

啟動VirtualApp後，界面是這樣的。

顯示的是已經通過VirtualApp安裝的APK，可以直接從SD卡或者系統中已有的APK中選擇安裝。安裝後直接點開圖示，就能跟安裝在外部的應用一樣打開APP。簡單嘗試了一下，Nexus 6P，Android 7.0，知乎和微網誌都能正常工作，并且運作速度跟外部安裝的差異不大。而且還可以安裝多個相同的應用，實作多開的效果。

粗略觀察

首先，我們來看一下它在開啟APP後的程序資訊，

u0_a200   22932 494   1034396 84008 SyS_epoll_ 0000000000 S io.virtualapp
u0_a200   22955 494   1064388 70408 SyS_epoll_ 0000000000 S io.virtualapp:x
u0_a200   22983 494   1530416 266948            0000000000 R com.zhihu.android
u0_a200   23320 494   1410736 214680 SyS_epoll_ 0000000000 S com.sina.weibo
u0_a200   23387 494   1174928 76848 SyS_epoll_ 0000000000 S com.sina.weibo.image
u0_a200   23415 494   1186076 81648 SyS_epoll_ 0000000000 S com.sina.weibo:remote
u0_a200   23455 494   1173888 76572 SyS_epoll_ 0000000000 S com.sina.weibo.imageservant
u0_a200   24028 494   1182780 74408 SyS_epoll_ 0000000000 S com.sina.weibo.servant
u0_a200   24425 494   1027636 66116 SyS_epoll_ 0000000000 S com.taobao.sophix_android
u0_a200   24492 494   1334412 174708 SyS_epoll_ 0000000000 S com.zhihu.android

可以看到，所有被ViralApp打開的應用，都和VirtalApp屬于同一個uid：u0_a200。其中，VirtualApp本身有兩個程序：io.virtualapp 和 io.virtualapp:x

io.virtualapp 就是可見的互動界面，同時也負責APK包的管理和安裝。

io.virtualapp:x 作為一個單獨的服務程序，虛拟了一些系統服務。後面我們還會提到。

以這裡安裝的微網誌為例，檢視一下它的程序的記憶體空間，可以看到相關路徑全都被映射到了

/data/data/io.virtualapp/virtual

下面，

... ...
b6d0f000-b7017000 r--p 00000000 fd:00 410335 /data/data/io.virtualapp/virtual/data/user/0/com.sina.weibo/Plugin/com.weibo.app.movie/dalvik-cache/base-1.dex
b7017000-b71d4000 r-xp 00308000 fd:00 410335 /data/data/io.virtualapp/virtual/data/user/0/com.sina.weibo/Plugin/com.weibo.app.movie/dalvik-cache/base-1.dex
... ...
bb745000-bb831000 r--p 00000000 fd:00 410247 /data/data/io.virtualapp/virtual/data/user/0/com.sina.weibo/code_cache/secondary-dexes/composer1312fd1cbada0e5074c9f9961b16aefb.dex
bb831000-bb8f0000 r-xp 000ec000 fd:00 410247 /data/data/io.virtualapp/virtual/data/user/0/com.sina.weibo/code_cache/secondary-dexes/composer1312fd1cbada0e5074c9f9961b16aefb.dex
... ...
bf448000-bf978000 r-xp 00000000 fd:00 410129 /data/data/io.virtualapp/virtual/data/app/com.sina.weibo/lib/libweiboffmpeg.so
bf978000-bf979000 ---p 00000000 00:00 0
bf979000-bf9ab000 r--p 00530000 fd:00 410129 /data/data/io.virtualapp/virtual/data/app/com.sina.weibo/lib/libweiboffmpeg.so
bf9ab000-bf9af000 rw-p 00562000 fd:00 410129 /data/data/io.virtualapp/virtual/data/app/com.sina.weibo/lib/libweiboffmpeg.so
... ...
c335a000-c33a9000 r-xp 00000000 fd:00 410127 /data/data/io.virtualapp/virtual/data/app/com.sina.weibo/lib/libweiboplayer.so
c33aa000-c33ad000 r--p 0004f000 fd:00 410127 /data/data/io.virtualapp/virtual/data/app/com.sina.weibo/lib/libweiboplayer.so
c33ad000-c33ae000 rw-p 00052000 fd:00 410127 /data/data/io.virtualapp/virtual/data/app/com.sina.weibo/lib/libweiboplayer.so
... ...

可見，這裡面對路徑做過了重新映射。具體實作我們還是來看一下代碼吧。

注入邏輯

要想實作對一個APP的虛拟化，就是不直接把APP安裝進系統，同時又要提供APP運作過程中所需的一切，進而可以讓它誤以為自己是運作在正常系統中。這裡就需要實作系統服務的虛拟化和相關路徑的虛拟化。

其中，系統服務的虛拟化主要靠注入大量framework元件來實作的。

@VirtualApp/lib/src/main/java/com/lody/virtual/client/core/InvocationStubManager.java
private void injectInternal() throws Throwable {
  if (VirtualCore.get().isMainProcess()) {
    return;
  }
  if (VirtualCore.get().isServerProcess()) {
    addInjector(new ActivityManagerStub());
    addInjector(new PackageManagerStub());
    return;
  }
  if (VirtualCore.get().isVAppProcess()) {
    addInjector(new LibCoreStub());
    addInjector(new ActivityManagerStub());
    addInjector(new PackageManagerStub());
    addInjector(HCallbackStub.getDefault());
    addInjector(new ISmsStub());
    addInjector(new ISubStub());
    addInjector(new DropBoxManagerStub());
    addInjector(new NotificationManagerStub());
    addInjector(new LocationManagerStub());
    addInjector(new WindowManagerStub());
    addInjector(new ClipBoardStub());
    addInjector(new MountServiceStub());
    addInjector(new BackupManagerStub());
    addInjector(new TelephonyStub());
    addInjector(new TelephonyRegistryStub());
    addInjector(new PhoneSubInfoStub());
    addInjector(new PowerManagerStub());
    addInjector(new AppWidgetManagerStub());
    addInjector(new AccountManagerStub());
    addInjector(new AudioManagerStub());
    addInjector(new SearchManagerStub());
    addInjector(new ContentServiceStub());
    addInjector(new ConnectivityStub());

    if (Build.VERSION.SDK_INT >= JELLY_BEAN_MR2) {
      addInjector(new VibratorStub());
      addInjector(new WifiManagerStub());
      addInjector(new BluetoothStub());
      addInjector(new ContextHubServiceStub());
    }
    if (Build.VERSION.SDK_INT >= JELLY_BEAN_MR1) {
      addInjector(new UserManagerStub());
    }

    if (Build.VERSION.SDK_INT >= JELLY_BEAN_MR1) {
      addInjector(new DisplayStub());
    }
    if (Build.VERSION.SDK_INT >= LOLLIPOP) {
      addInjector(new PersistentDataBlockServiceStub());
      addInjector(new InputMethodManagerStub());
      addInjector(new MmsStub());
      addInjector(new SessionManagerStub());
      addInjector(new JobServiceStub());
      addInjector(new RestrictionStub());
    }
    if (Build.VERSION.SDK_INT >= KITKAT) {
      addInjector(new AlarmManagerStub());
      addInjector(new AppOpsManagerStub());
      addInjector(new MediaRouterServiceStub());
    }
    if (Build.VERSION.SDK_INT >= LOLLIPOP_MR1) {
      addInjector(new GraphicsStatsStub());
    }
    if (Build.VERSION.SDK_INT >= M) {
      addInjector(new NetworkManagementStub());
    }
    if (Build.VERSION.SDK_INT >= N) {
              addInjector(new WifiScannerStub());
              addInjector(new ShortcutServiceStub());
          }
  }
}

這個注入過程是發生在

io.virtualapp.VApp.attachBaseContext

中，是以，每次啟動一個子程序都會執行到這裡，這會區分是

isMainProcess（io.virtualapp）

或者

isServerProcess（io.virtualapp:x）

isVAppProcess（被安裝APP）

來進行不同的注入，可以看到，注入最多的還是在被安裝APP的程序中。

可以看到，之前在

injectInternal

中

addInjector

的所有Stub都會調用它的inject方法。

VirtualApp/lib/src/main/java/com/lody/virtual/client/core/InvocationStubManager.java

void injectAll() throws Throwable {
  for (IInjector injector : mInjectors.values()) {
    injector.inject();
  }
  // XXX: Lazy inject the Instrumentation,
  addInjector(AppInstrumentation.getDefault());
}

由此實作對各個系統類的替換。

而在底層，VirtualApp還實作了對原本路徑的替換，在java層傳入需要重定向的所有路徑。

private void startIOUniformer() {
        ApplicationInfo info = mBoundApplication.appInfo;
        int userId = VUserHandle.myUserId();
        String wifiMacAddressFile = deviceInfo.getWifiFile(userId).getPath();
        NativeEngine.redirectDirectory("/sys/class/net/wlan0/address", wifiMacAddressFile);
        NativeEngine.redirectDirectory("/sys/class/net/eth0/address", wifiMacAddressFile);
        NativeEngine.redirectDirectory("/sys/class/net/wifi/address", wifiMacAddressFile);
        NativeEngine.redirectDirectory("/data/data/" + info.packageName, info.dataDir);
        NativeEngine.redirectDirectory("/data/user/0/" + info.packageName, info.dataDir);
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.N) {
            NativeEngine.redirectDirectory("/data/user_de/0/" + info.packageName, info.dataDir);
        }
        String libPath = new File(VEnvironment.getDataAppPackageDirectory(info.packageName), "lib").getAbsolutePath();
        String userLibPath = new File(VEnvironment.getUserSystemDirectory(userId), "lib").getAbsolutePath();
        NativeEngine.redirectDirectory(userLibPath, libPath);
        NativeEngine.redirectDirectory("/data/data/" + info.packageName + "/lib/", libPath);
        NativeEngine.redirectDirectory("/data/user/0/" + info.packageName + "/lib/", libPath);

        NativeEngine.readOnly(VEnvironment.getDataAppDirectory().getPath());
        VirtualStorageManager vsManager = VirtualStorageManager.get();
        String vsPath = vsManager.getVirtualStorage(info.packageName, userId);
        boolean enable = vsManager.isVirtualStorageEnable(info.packageName, userId);
        if (enable && vsPath != null) {
            File vsDirectory = new File(vsPath);
            if (vsDirectory.exists() || vsDirectory.mkdirs()) {
                HashSet<String> mountPoints = getMountPoints();
                for (String mountPoint : mountPoints) {
                    NativeEngine.redirectDirectory(mountPoint, vsPath);
                }
            }
        }
        NativeEngine.hook();
    }

這些路徑最終會添加進JNI層的一個映射表中

void IOUniformer::redirect(const char *orig_path, const char *new_path) {
    LOGI("Start Java_nativeRedirect : from %s to %s", orig_path, new_path);
    add_pair(orig_path, new_path);
}

static void add_pair(const char *_orig_path, const char *_new_path) {
    std::string origPath = std::string(_orig_path);
    std::string newPath = std::string(_new_path);
    IORedirectMap.insert(std::pair<std::string, std::string>(origPath, newPath));
    if (endWith(origPath, '/')) {
        RootIORedirectMap.insert(
                std::pair<std::string, std::string>(
                        origPath.substr(0, origPath.length() - 1),
                        newPath.substr(0, newPath.length() - 1))
        );
    }
}

然後，會hook所有的c庫函數，這些函數在調用的時候，就會替換路徑為新路徑。由于hook的是libc的函數，java層和虛拟機的檔案通路最終也會調用到這裡，進而受到影響。

void IOUniformer::startUniformer(int api_level, int preview_api_level) {
    gVars.hooked_process = true;
    HOOK_SYMBOL(RTLD_DEFAULT, vfork);
    HOOK_SYMBOL(RTLD_DEFAULT, kill);
    HOOK_SYMBOL(RTLD_DEFAULT, __getcwd);
    HOOK_SYMBOL(RTLD_DEFAULT, truncate);
    HOOK_SYMBOL(RTLD_DEFAULT, __statfs64);
    HOOK_SYMBOL(RTLD_DEFAULT, execve);
    HOOK_SYMBOL(RTLD_DEFAULT, __open);
    if ((api_level < 25) || (api_level == 25 && preview_api_level == 0)) {
        HOOK_SYMBOL(RTLD_DEFAULT, utimes);
        HOOK_SYMBOL(RTLD_DEFAULT, mkdir);
        HOOK_SYMBOL(RTLD_DEFAULT, chmod);
        HOOK_SYMBOL(RTLD_DEFAULT, lstat);
        HOOK_SYMBOL(RTLD_DEFAULT, link);
        HOOK_SYMBOL(RTLD_DEFAULT, symlink);
        HOOK_SYMBOL(RTLD_DEFAULT, mknod);
        HOOK_SYMBOL(RTLD_DEFAULT, rmdir);
        HOOK_SYMBOL(RTLD_DEFAULT, chown);
        HOOK_SYMBOL(RTLD_DEFAULT, rename);
        HOOK_SYMBOL(RTLD_DEFAULT, stat);
        HOOK_SYMBOL(RTLD_DEFAULT, chdir);
        HOOK_SYMBOL(RTLD_DEFAULT, access);
        HOOK_SYMBOL(RTLD_DEFAULT, readlink);
        HOOK_SYMBOL(RTLD_DEFAULT, unlink);
    }
    HOOK_SYMBOL(RTLD_DEFAULT, fstatat);
    HOOK_SYMBOL(RTLD_DEFAULT, fchmodat);
    HOOK_SYMBOL(RTLD_DEFAULT, symlinkat);
    HOOK_SYMBOL(RTLD_DEFAULT, readlinkat);
    HOOK_SYMBOL(RTLD_DEFAULT, unlinkat);
    HOOK_SYMBOL(RTLD_DEFAULT, linkat);
    HOOK_SYMBOL(RTLD_DEFAULT, utimensat);
    HOOK_SYMBOL(RTLD_DEFAULT, __openat);
    HOOK_SYMBOL(RTLD_DEFAULT, faccessat);
    HOOK_SYMBOL(RTLD_DEFAULT, mkdirat);
    HOOK_SYMBOL(RTLD_DEFAULT, renameat);
    HOOK_SYMBOL(RTLD_DEFAULT, fchownat);
    HOOK_SYMBOL(RTLD_DEFAULT, mknodat);
//    hook_dlopen(api_level);

#if defined(__i386__) || defined(__x86_64__)
    // Do nothing
#else
    GodinHook::NativeHook::hookAllRegistered();
#endif
}

以chmod函數為例，

// int chmod(const char *path, mode_t mode);
HOOK_DEF(int, chmod, const char *pathname, mode_t mode) {
    const char *redirect_path = match_redirected_path(pathname);
    if (isReadOnlyPath(redirect_path)) {
        return -1;
    }
    int ret = syscall(__NR_chmod, redirect_path, mode);
    FREE(redirect_path, pathname);
    return ret;
}

可以看到，它會把原先的pathname，通過

match_redirected_path

找到映射後的新路徑，然後用

syscall

來調用它，這樣就實作了所有路徑的重定向。

啟動原理

最後我們來看下，一個APP是如何在VirtualApp裡啟動的。

啟動一個app是在

LoadingActivity

的

launch

方法

public static void launch(Context context, String packageName, int userId) {
    Intent intent = VirtualCore.get().getLaunchIntent(packageName, userId);
    if (intent != null) {
        Intent loadingPageIntent = new Intent(context, LoadingActivity.class);
        loadingPageIntent.putExtra(PKG_NAME_ARGUMENT, packageName);
        loadingPageIntent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
        loadingPageIntent.putExtra(KEY_INTENT, intent);
        loadingPageIntent.putExtra(KEY_USER, userId);
        context.startActivity(loadingPageIntent);
    }
}

然後會調用到

VActivityManager

startActivity

裡

public int startActivity(Intent intent, ActivityInfo info, IBinder resultTo, Bundle options, String resultWho, int requestCode, int userId) {
    try {
        return getService().startActivity(intent, info, resultTo, options, resultWho, requestCode, userId);
    } catch (RemoteException e) {
        return VirtualRuntime.crash(e);
    }
}

這裡的service會通過binder最終找到io.virtualapp:x程序的

VActivityManagerService

。

@Override
public int startActivity(Intent intent, ActivityInfo info, IBinder resultTo, Bundle options, String resultWho, int requestCode, int userId) {
    synchronized (this) {
        return mMainStack.startActivityLocked(userId, intent, info, resultTo, options, resultWho, requestCode);
    }
}

Service端的

startActivity

會調用

ActivityStack

startActivityLocked

，然後調用到

startActivityInNewTaskLocked

private void startActivityInNewTaskLocked(int userId, Intent intent, ActivityInfo info, Bundle options) {
    Intent destIntent = startActivityProcess(userId, null, intent, info);// 換intent
    if (destIntent != null) {
        destIntent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
        destIntent.addFlags(Intent.FLAG_ACTIVITY_MULTIPLE_TASK);
        destIntent.addFlags(Intent.FLAG_ACTIVITY_RESET_TASK_IF_NEEDED);

        if (Build.VERSION.SDK_INT < Build.VERSION_CODES.LOLLIPOP) {
            // noinspection deprecation
            destIntent.addFlags(Intent.FLAG_ACTIVITY_CLEAR_WHEN_TASK_RESET);
        } else {
            destIntent.addFlags(Intent.FLAG_ACTIVITY_NEW_DOCUMENT);
        }

        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.JELLY_BEAN) {
            VirtualCore.get().getContext().startActivity(destIntent, options);
        } else {
            VirtualCore.get().getContext().startActivity(destIntent);
        }
    }
}

這裡的intent會在

startActivityProcess

的時候進行替換

private Intent startActivityProcess(int userId, ActivityRecord sourceRecord, Intent intent, ActivityInfo info) {
    intent = new Intent(intent);
    ProcessRecord targetApp = mService.startProcessIfNeedLocked(info.processName, userId, info.packageName);
    if (targetApp == null) {
        return null;
    }
    Intent targetIntent = new Intent();
=>  targetIntent.setClassName(VirtualCore.get().getHostPkg(), fetchStubActivity(targetApp.vpid, info));
    ComponentName component = intent.getComponent();
    if (component == null) {
        component = ComponentUtils.toComponentName(info);
    }
    targetIntent.setType(component.flattenToString());
    StubActivityRecord saveInstance = new StubActivityRecord(intent, info,
            sourceRecord != null ? sourceRecord.component : null, userId);
    saveInstance.saveToIntent(targetIntent);
    return targetIntent;
}

targetIntent.setClassName

會設定為VirtualApp的包名，同時

fetchStubActivity

用來擷取插樁Activity

private String fetchStubActivity(int vpid, ActivityInfo targetInfo) {

        boolean isFloating = false;
        boolean isTranslucent = false;
        boolean showWallpaper = false;
        try {
            int[] R_Styleable_Window = R_Hide.styleable.Window.get();
            int R_Styleable_Window_windowIsTranslucent = R_Hide.styleable.Window_windowIsTranslucent.get();
            int R_Styleable_Window_windowIsFloating = R_Hide.styleable.Window_windowIsFloating.get();
            int R_Styleable_Window_windowShowWallpaper = R_Hide.styleable.Window_windowShowWallpaper.get();

            AttributeCache.Entry ent = AttributeCache.instance().get(targetInfo.packageName, targetInfo.theme,
                    R_Styleable_Window);
            if (ent != null && ent.array != null) {
                showWallpaper = ent.array.getBoolean(R_Styleable_Window_windowShowWallpaper, false);
                isTranslucent = ent.array.getBoolean(R_Styleable_Window_windowIsTranslucent, false);
                isFloating = ent.array.getBoolean(R_Styleable_Window_windowIsFloating, false);
            }
        } catch (Throwable e) {
            e.printStackTrace();
        }

        boolean isDialogStyle = isFloating || isTranslucent || showWallpaper;
        if (isDialogStyle) {
            return VASettings.getStubDialogName(vpid);
        } else {
            return VASettings.getStubActivityName(vpid);
        }
    }

這裡最終傳回的是

VASettings.getStubActivityName

public static String STUB_ACTIVITY = StubActivity.class.getName();

    public static String getStubActivityName(int index) {
        return String.format(Locale.ENGLISH, "%s$C%d", STUB_ACTIVITY, index);
    }

可見，最終傳回的Activity名是

com.lody.virtual.client.stub.StubActivity$C?

，

表示具體數字。

而它們，是預先在AndroidManifest裡面寫好的。

<activity
            android:name="com.lody.virtual.client.stub.StubActivity$C0"
            android:configChanges="mcc|mnc|locale|touchscreen|keyboard|keyboardHidden|navigation|orientation|screenLayout|uiMode|screenSize|smallestScreenSize|fontScale"
            android:process=":p0"
            android:taskAffinity="com.lody.virtual.vt"
            android:theme="@style/VATheme" />

        <activity
            android:name="com.lody.virtual.client.stub.StubActivity$C1"
            android:configChanges="mcc|mnc|locale|touchscreen|keyboard|keyboardHidden|navigation|orientation|screenLayout|uiMode|screenSize|smallestScreenSize|fontScale"
            android:process=":p1"
            android:taskAffinity="com.lody.virtual.vt"
            android:theme="@style/VATheme" />

        <activity
            android:name="com.lody.virtual.client.stub.StubActivity$C2"
            android:configChanges="mcc|mnc|locale|touchscreen|keyboard|keyboardHidden|navigation|orientation|screenLayout|uiMode|screenSize|smallestScreenSize|fontScale"
            android:process=":p2"
            android:taskAffinity="com.lody.virtual.vt"
            android:theme="@style/VATheme" />

        <activity
            android:name="com.lody.virtual.client.stub.StubActivity$C3"
            android:configChanges="mcc|mnc|locale|touchscreen|keyboard|keyboardHidden|navigation|orientation|screenLayout|uiMode|screenSize|smallestScreenSize|fontScale"
            android:process=":p3"
            android:taskAffinity="com.lody.virtual.vt"
            android:theme="@style/VATheme" />

這麼一來，

startActivity

最終會啟動到這裡的

StubActivity

中。

并且每次都會建立一個子程序

p?

，在開啟一個程序時，都會先執行到

io.virtualapp.VApp.attachBaseContext

中，這樣，就會走到剛才提到的

injectInternal

方法中，實作所有注入邏輯，把所有與系統互動的地方都進行替換。而

StubActivity

onCreate

的方法，雖然在代碼裡面有聲明，卻永遠執行不到：

public abstract class StubActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // The savedInstanceState's classLoader is not exist.
        super.onCreate(null);
        finish();
        // It seems that we have conflict with the other Android-Plugin-Framework.
        Intent stubIntent = getIntent();
        // Try to acquire the actually component information.
        StubActivityRecord r = new StubActivityRecord(stubIntent);
        if (r.intent != null) {
            if (TextUtils.equals(r.info.processName, VirtualRuntime.getProcessName()) && r.userId == VUserHandle.myUserId()) {
                // Retry to inject the HCallback to instead of the exist one.
                InvocationStubManager.getInstance().checkEnv(HCallbackStub.class);
                Intent intent = r.intent;
                startActivity(intent);
            } else {
                // Start the target Activity in other process.
                VActivityManager.get().startActivity(r.intent, r.userId);
            }
        }
    }

    public static class C0 extends StubActivity {
    }

    public static class C1 extends StubActivity {
    }

    public static class C2 extends StubActivity {
    }

    public static class C3 extends StubActivity {
    }

    ... ...
}

在替換後，執行流就被改變了，可以看到，在執行到APP的真正

Application

前，能發現被注入的代碼：

com.taobao.sophix_app.MyApplication.onCreate(MyApplication.java:33)
android.app.Instrumentation.callApplicationOnCreate(Instrumentation.java:1024)
com.lody.virtual.client.hook.delegate.InstrumentationDelegate.callApplicationOnCreate(InstrumentationDelegate.java:225)
com.lody.virtual.client.hook.delegate.AppInstrumentation.callApplicationOnCreate(AppInstrumentation.java:137)
com.lody.virtual.client.VClientImpl.bindApplicationNoCheck(VClientImpl.java:312)
com.lody.virtual.client.VClientImpl.bindApplication(VClientImpl.java:192)
com.lody.virtual.client.hook.proxies.am.HCallbackStub.handleLaunchActivity(HCallbackStub.java:114)
com.lody.virtual.client.hook.proxies.am.HCallbackStub.handleMessage(HCallbackStub.java:71)
android.os.Handler.dispatchMessage(Handler.java:98)
android.os.Looper.loop(Looper.java:154)
android.app.ActivityThread.main(ActivityThread.java:6077)
java.lang.reflect.Method.invoke(Native Method)
com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:865)
com.android.internal.os.ZygoteInit.main(ZygoteInit.java:755)

思考

我們已經大緻分析了VirtualApp的工作原理，當然裡面有非常多細節沒有覆寫到，有興趣的同學可以自己研究一下。

個人認為，VirtualApp可以加載外部APK的特性，能夠引發無窮的想象。

比如一些簡單的脫殼，就可以用VirtualApp先加載APK，然後在運作期間直接把記憶體中脫殼後的DEX檔案dump出來。

另外，由于Sophix熱修複方案也是非侵入的，如果把Sophix內建進VirtualApp中，就能夠在啟動APP前加載一個更新檔，替換原有APP中的某些類，實作不重新打包原有APK的情況下對原先APP的邏輯的修改。

Android虛拟化引擎VirtualApp探究

介紹

小試牛刀

粗略觀察

注入邏輯

啟動原理

思考

繼續閱讀

Java小案例——随機數猜測随機數猜測

nginx location中斜線的位置的重要性

Android電視機（機頂盒）初次開發的一些經驗分享

27 Best Free Eclipse Plug-ins for Java Developer to be ProductiveCode Quality PluginsText Editor PluginsDependency ManagementVersion Control Integration PluginsFramework Development Continuous Integration Related PluginsOther Utility Plugins

Java String.format方法的簡單使用

neo4j之cypher使用文檔

GitHub連夜封殺！這份阿裡 10W 字内部 Java 字面試手冊到底有多強？

spark/scala關于【資源檔案】加載方法概述外部檔案加載方案測試資源檔案打包入jar包中小結

mybatis_入門程式Mybatis入門

AOP程式設計_Android優雅權限架構(1)概念基礎，2021金三銀四前言正文大綱正文

Effective Java 8:通用程式設計

OOM三種類型

工廠模式-三種類型

【遞歸】高效率求2的n次幂

win10本地scala和spark安裝安裝scala安裝spark

scala (3) Function 和 Method
