java NIO 運作原理介紹

開篇

回想研究所學生期間在H3C做項目的時候第一次接觸epoll的異步事件，心血來潮看了下java的NIO的實作，希望同樣感興趣的人一起看看。Netty是java NIO的集大成者，一定要看看。

java NIO server demo

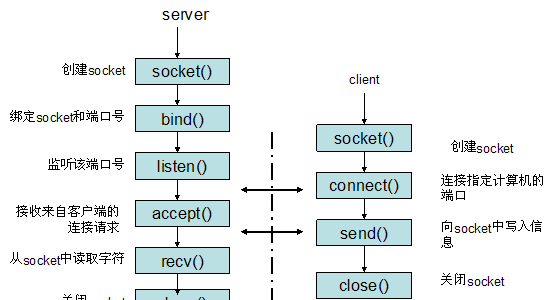

socket server端工作标準流程

建立socket：建立ServerSocketChannel，通過ServerSocketChannel.open()方法。
綁定socket：ServerSocketChannel綁定端口，通過serverSocketChannel.bind()方法。
前置準備：建立selector對象，通過Selector.open()方法。
前置準備：注冊Channel到selector并綁定事件，通過serverSocketChannel.register()。
監聽端口号：通過listen()方法開始進入監聽。
處理事件： while循環中等待select操作傳回區分連接配接還是資料進行不同處理。

public class NIOServer {

    private Selector selector;

    public void initServer(int port) throws IOException {
        // 獲得一個ServerSocketChannel通道
        ServerSocketChannel serverSocketChannel = ServerSocketChannel.open();
        // 設定通道為非阻塞
        serverSocketChannel.configureBlocking(false);
        // 将該通道對應的ServerSocket綁定到port端口
        serverSocketChannel.bind(new InetSocketAddress(port));
        // 獲得一個通道管理器
        this.selector = Selector.open();
        // 将通道管理器和該通道綁定，并為該通道注冊SelectionKey.OP_ACCEPT事件,注冊該事件後，
        // 當該事件到達時，selector.select()會傳回，如果該事件沒到達selector.select()會一直阻塞。
        serverSocketChannel.register(selector, SelectionKey.OP_ACCEPT);
    }

    public void listen() throws IOException {
        System.out.println("服務端啟動成功！");
        // 輪詢通路selector
        while (true) {
            // 當注冊的事件到達時，方法傳回；否則,該方法會一直阻塞
            selector.select();
            // 獲得selector中選中的項的疊代器，選中的項為注冊的事件
            Iterator<SelectionKey> ite = this.selector.selectedKeys().iterator();
            while (ite.hasNext()) {
                SelectionKey key = (SelectionKey) ite.next();
                // 删除已選的key,以防重複處理
                ite.remove();

                if (key.isAcceptable()) {// 用戶端請求連接配接事件
                    ServerSocketChannel server = (ServerSocketChannel) key.channel();
                    // 獲得和用戶端連接配接的通道
                    SocketChannel channel = server.accept();
                    // 設定成非阻塞
                    channel.configureBlocking(false);

                    // 在這裡可以給用戶端發送資訊哦
                    channel.write(ByteBuffer.wrap(new String("向用戶端發送了一條資訊")
                            .getBytes("utf-8")));
                    // 在和用戶端連接配接成功之後，為了可以接收到用戶端的資訊，需要給通道設定讀的權限。
                    channel.register(this.selector, SelectionKey.OP_READ);

                } else if (key.isReadable()) {// 獲得了可讀的事件
                    read(key);
                }

            }

        }
    }

    public void read(SelectionKey key) throws IOException {
        // 伺服器可讀取消息:得到事件發生的Socket通道
        SocketChannel channel = (SocketChannel) key.channel();
        // 建立讀取的緩沖區
        ByteBuffer buffer = ByteBuffer.allocate(512);
        channel.read(buffer);
        byte[] data = buffer.array();
        String msg = new String(data).trim();
        System.out.println("服務端收到資訊：" + msg);
        ByteBuffer outBuffer = ByteBuffer.wrap(msg.getBytes("utf-8"));
        channel.write(outBuffer);// 将消息回送給用戶端
    }

    public static void main(String[] args) throws IOException {
        NIOServer server = new NIOServer();
        server.initServer(8000);
        server.listen();
    }
}

ServerSocketChannel和Selector初始化過程

在java NIO Server的标準過程中，有兩個核心的操作需要深入分析一下，分别是ServerSocketChannel.open() 和 Selector.open()兩個過程，這裡針對這兩個對象的初始化流程進行下細緻的分解。

// ServerSocketChannel的初始化過程
ServerSocketChannel serverSocketChannel = ServerSocketChannel.open();

// Selector的初始化過程
selector = Selector.open();

通用邏輯抽取

ServerSocketChannel.open()=SelectorProvider.provider().openServerSocketChannel()
Selector.open()=SelectorProvider.provider().openSelector()

兩者有共同點在于都調用了SelectorProvider.provider()方法，是以先把相同部分進行分析。

public abstract class ServerSocketChannel extends AbstractSelectableChannel
    implements NetworkChannel
{
    protected ServerSocketChannel(SelectorProvider provider) {
        super(provider);
    }

    public static ServerSocketChannel open() throws IOException {
        return SelectorProvider.provider().openServerSocketChannel();
    }
}


public abstract class Selector implements Closeable {

    protected Selector() { }

    public static Selector open() throws IOException {
        return SelectorProvider.provider().openSelector();
    }
}

SelectorProvider對象建立

SelectorProvider.provider()方法會在内部建立唯一的SelectorProvider對象，通過鎖來保證建立唯一對象。
SelectorProvider對象通過DefaultSelectorProvider.create()方法進行建立。
DefaultSelectorProvider.create()方法内部根據實際系統建立不同的對象，以linux環境中EPollSelectorProvider對象為例繼續分析。

public abstract class SelectorProvider {

    private static final Object lock = new Object();
    private static SelectorProvider provider = null;

    public static SelectorProvider provider() {
        synchronized (lock) {
            if (provider != null)
                return provider;
            return AccessController.doPrivileged(
                new PrivilegedAction<SelectorProvider>() {
                    public SelectorProvider run() {
                            if (loadProviderFromProperty())
                                return provider;
                            if (loadProviderAsService())
                                return provider;
                            provider = sun.nio.ch.DefaultSelectorProvider.create();
                            return provider;
                        }
                    });
        }
    }
}



public class DefaultSelectorProvider {

    public static SelectorProvider create() {
        String osname = AccessController.doPrivileged(
            new GetPropertyAction("os.name"));
        if ("SunOS".equals(osname)) {
            return new sun.nio.ch.DevPollSelectorProvider();
        }

        // use EPollSelectorProvider for Linux kernels >= 2.6
        if ("Linux".equals(osname)) {
            String osversion = AccessController.doPrivileged(
                new GetPropertyAction("os.version"));
            String[] vers = osversion.split("\\.", 0);
            if (vers.length >= 2) {
                try {
                    int major = Integer.parseInt(vers[0]);
                    int minor = Integer.parseInt(vers[1]);
                    if (major > 2 || (major == 2 && minor >= 6)) {
                        return new sun.nio.ch.EPollSelectorProvider();
                    }
                } catch (NumberFormatException x) {
                    // format not recognized
                }
            }
        }

        return new sun.nio.ch.PollSelectorProvider();
    }
}

EPollSelectorProvider的操作過程

SelectorProvider.provider().openServerSocketChannel()調用EPollSelectorProvider的openServerSocketChannel()方法傳回EPollSelectorImpl對象。
SelectorProvider.provider().openSelector()調用EPollSelectorProvider的openSelector()方法傳回ServerSocketChannelImpl對象。

繼續分析ServerSocketChannelImpl對象和EPollSelectorImpl對象。

public class EPollSelectorProvider extends SelectorProviderImpl
{
    public AbstractSelector openSelector() throws IOException {
        return new EPollSelectorImpl(this);
    }

    public Channel inheritedChannel() throws IOException {
        return InheritedChannel.getChannel();
    }
}



public abstract class SelectorProviderImpl extends SelectorProvider
{

    public DatagramChannel openDatagramChannel() throws IOException {
        return new DatagramChannelImpl(this);
    }

    public DatagramChannel openDatagramChannel(ProtocolFamily family) throws IOException {
        return new DatagramChannelImpl(this, family);
    }

    public Pipe openPipe() throws IOException {
        return new PipeImpl(this);
    }

    public abstract AbstractSelector openSelector() throws IOException;

    public ServerSocketChannel openServerSocketChannel() throws IOException {
        return new ServerSocketChannelImpl(this);
    }

    public SocketChannel openSocketChannel() throws IOException {
        return new SocketChannelImpl(this);
    }
}

EPollSelectorImpl對象

EPollSelectorImpl構造函數建立内部通信的socket對IOUtil.makePipe(false)。
EPollSelectorImpl的doSelect方法負責傳回事件到來的fds。
EPollSelectorImpl的fdToKey的map儲存fd和SelectionKey的映射。

class EPollSelectorImpl extends SelectorImpl
{
    // File descriptors used for interrupt
    protected int fd0;
    protected int fd1;

    // The poll object
    EPollArrayWrapper pollWrapper;

    // Maps from file descriptors to keys
    private Map<Integer,SelectionKeyImpl> fdToKey;

    // True if this Selector has been closed
    private volatile boolean closed = false;

    // Lock for interrupt triggering and clearing
    private Object interruptLock = new Object();
    private boolean interruptTriggered = false;

    EPollSelectorImpl(SelectorProvider sp) {
        super(sp);
        long pipeFds = IOUtil.makePipe(false);
        fd0 = (int) (pipeFds >>> 32);
        fd1 = (int) pipeFds;
        pollWrapper = new EPollArrayWrapper();
        pollWrapper.initInterrupt(fd0, fd1);
        fdToKey = new HashMap<Integer,SelectionKeyImpl>();
    }

    protected int doSelect(long timeout) throws IOException
    {
        if (closed)
            throw new ClosedSelectorException();
        processDeregisterQueue();
        try {
            begin();
            // 等待事件到來，收集事件到來的socket的fd并用來處理
            pollWrapper.poll(timeout);
        } finally {
            end();
        }
        processDeregisterQueue();
        // 更新需要寫入的keys
        int numKeysUpdated = updateSelectedKeys();
        if (pollWrapper.interrupted()) {
            // Clear the wakeup pipe
            pollWrapper.putEventOps(pollWrapper.interruptedIndex(), 0);
            synchronized (interruptLock) {
                pollWrapper.clearInterrupted();
                IOUtil.drain(fd0);
                interruptTriggered = false;
            }
        }
        return numKeysUpdated;
    }

    private int updateSelectedKeys() {
        int entries = pollWrapper.updated;
        int numKeysUpdated = 0;
        for (int i=0; i<entries; i++) {
            int nextFD = pollWrapper.getDescriptor(i);
            SelectionKeyImpl ski = fdToKey.get(Integer.valueOf(nextFD));
            // ski is null in the case of an interrupt
            if (ski != null) {
                int rOps = pollWrapper.getEventOps(i);
                if (selectedKeys.contains(ski)) {
                    if (ski.channel.translateAndSetReadyOps(rOps, ski)) {
                        numKeysUpdated++;
                    }
                } else {
                    ski.channel.translateAndSetReadyOps(rOps, ski);
                    if ((ski.nioReadyOps() & ski.nioInterestOps()) != 0) {
                        // selectedKeys儲存ski也就是事件到的socket連接配接
                        // ski的對象資料結構需要好好研究一下
                        selectedKeys.add(ski);
                        numKeysUpdated++;
                    }
                }
            }
        }
        return numKeysUpdated;
    }
}

ServerSocketChannelImpl對象

ServerSocketChannelImpl extends ServerSocketChannel
ServerSocketChannel extends AbstractSelectableChannel
ServerSocketChannelImpl對象提供bind()&accept()方法
ServerSocketChannelImpl的accept方法内部建立新連接配接的SocketChannelImpl對象傳回

class ServerSocketChannelImpl extends ServerSocketChannel implements SelChImpl
{
    private final Object stateLock = new Object();
    private SocketAddress localAddress;
    ServerSocket socket;

    ServerSocketChannelImpl(SelectorProvider sp) throws IOException {
        super(sp);
        this.fd =  Net.serverSocket(true);
        this.fdVal = IOUtil.fdVal(fd);
        this.state = ST_INUSE;
    }

    ServerSocketChannelImpl(SelectorProvider sp,
                            FileDescriptor fd,
                            boolean bound) throws IOException
    {
        super(sp);
        this.fd =  fd;
        this.fdVal = IOUtil.fdVal(fd);
        this.state = ST_INUSE;
        if (bound)
            localAddress = Net.localAddress(fd);
    }

    @Override
    public ServerSocketChannel bind(SocketAddress local, int backlog) throws IOException {
        // 省略相關代碼
    }

    public SocketChannel accept() throws IOException {
       // 省略相關代碼
    }

}



public abstract class AbstractSelectableChannel extends SelectableChannel
{
    protected AbstractSelectableChannel(SelectorProvider provider) {
        this.provider = provider;
    }

    public final SelectionKey register(Selector sel, int ops,
                                       Object att)
        throws ClosedChannelException
    {
        synchronized (regLock) {
            if (!isOpen())
                throw new ClosedChannelException();
            if ((ops & ~validOps()) != 0)
                throw new IllegalArgumentException();
            if (blocking)
                throw new IllegalBlockingModeException();
            SelectionKey k = findKey(sel);
            if (k != null) {
                k.interestOps(ops);
                k.attach(att);
            }
            if (k == null) {
                // New registration
                synchronized (keyLock) {
                    if (!isOpen())
                        throw new ClosedChannelException();
                    k = ((AbstractSelector)sel).register(this, ops, att);
                    addKey(k);
                }
            }
            return k;
        }
    }
}

select過程

select執行過程

執行selector.select()操作時實際是調用了子類實作的doSelect()方法。
進一步跟進子類的doSelect()方法。

abstract class SelectorImpl extends AbstractSelector
{
    // 儲存事件到來的keys
    protected Set<SelectionKey> selectedKeys;
    protected HashSet<SelectionKey> keys;
    private Set<SelectionKey> publicKeys;             // Immutable
    private Set<SelectionKey> publicSelectedKeys;     // Removal allowed, but not addition

    protected abstract int doSelect(long timeout) throws IOException;

    private int lockAndDoSelect(long timeout) throws IOException {
        synchronized (this) {
            if (!isOpen())
                throw new ClosedSelectorException();
            synchronized (publicKeys) {
                synchronized (publicSelectedKeys) {
                    return doSelect(timeout);
                }
            }
        }
    }

    public int select(long timeout) throws IOException
    {
        if (timeout < 0)
            throw new IllegalArgumentException("Negative timeout");
        return lockAndDoSelect((timeout == 0) ? -1 : timeout);
    }

    public int select() throws IOException {
        return select(0);
    }

    public Set<SelectionKey> selectedKeys() {
        if (!isOpen() && !Util.atBugLevel("1.4"))
            throw new ClosedSelectorException();
        return publicSelectedKeys;
    }
}

pollWrapper.poll(timeout)以逾時等待的形式等待epoll的消息通知。
通過updateSelectedKeys方法收集有事件到達的fds儲存到selectedKeys。

class EPollSelectorImpl extends SelectorImpl
{
    protected int doSelect(long timeout) throws IOException
    {
        if (closed)
            throw new ClosedSelectorException();
        processDeregisterQueue();
        try {
            begin();
            // 等待事件到來，收集事件到來的socket的fd并用來處理
            pollWrapper.poll(timeout);
        } finally {
            end();
        }
        processDeregisterQueue();
        // 更新需要寫入的keys
        int numKeysUpdated = updateSelectedKeys();
        if (pollWrapper.interrupted()) {
            // Clear the wakeup pipe
            pollWrapper.putEventOps(pollWrapper.interruptedIndex(), 0);
            synchronized (interruptLock) {
                pollWrapper.clearInterrupted();
                IOUtil.drain(fd0);
                interruptTriggered = false;
            }
        }
        return numKeysUpdated;
    }

    private int updateSelectedKeys() {
        int entries = pollWrapper.updated;
        int numKeysUpdated = 0;
        for (int i=0; i<entries; i++) {
            int nextFD = pollWrapper.getDescriptor(i);
            SelectionKeyImpl ski = fdToKey.get(Integer.valueOf(nextFD));
            // ski is null in the case of an interrupt
            if (ski != null) {
                int rOps = pollWrapper.getEventOps(i);
                if (selectedKeys.contains(ski)) {
                    if (ski.channel.translateAndSetReadyOps(rOps, ski)) {
                        numKeysUpdated++;
                    }
                } else {
                    ski.channel.translateAndSetReadyOps(rOps, ski);
                    if ((ski.nioReadyOps() & ski.nioInterestOps()) != 0) {
                        // selectedKeys儲存ski也就是事件到的socket連接配接
                        // ski的對象資料結構需要好好研究一下
                        selectedKeys.add(ski);
                        numKeysUpdated++;
                    }
                }
            }
        }
        return numKeysUpdated;
    }
}

accept過程

accept的過程很簡單就是accept新socket并建立SocketChannelImpl傳回即可。
SocketChannelImpl對象後面需要注冊到Selector當中是以需要進一步分析。

public SocketChannel accept() throws IOException {
            // 省略相關代碼
            try {
                    // 省略相關代碼
                    // 新accept的socket放在newfd當中
                    n = accept0(this.fd, newfd, isaa);
                }
            }

            IOUtil.configureBlocking(newfd, true);
            InetSocketAddress isa = isaa[0];
            // 通過SocketChannelImpl包裝newfd對象
            sc = new SocketChannelImpl(provider(), newfd, isa);

            // 省略相關代碼
            return sc;

        }
    }

SocketChannelImpl對象

SocketChannelImpl可以了解為普通Socket的封裝，包括read/write等方法
SocketChannelImpl extends SocketChannel extends AbstractSelectableChannel
AbstractSelectableChannel提供register到selector對象的方法

class SocketChannelImpl extends SocketChannel implements SelChImpl
{
    SocketChannelImpl(SelectorProvider sp) throws IOException {
        super(sp);
        this.fd = Net.socket(true);
        this.fdVal = IOUtil.fdVal(fd);
        this.state = ST_UNCONNECTED;
    }

    SocketChannelImpl(SelectorProvider sp,
                      FileDescriptor fd,
                      boolean bound)
        throws IOException
    {
        super(sp);
        this.fd = fd;
        this.fdVal = IOUtil.fdVal(fd);
        this.state = ST_UNCONNECTED;
        if (bound)
            this.localAddress = Net.localAddress(fd);
    }

    SocketChannelImpl(SelectorProvider sp,
                      FileDescriptor fd, InetSocketAddress remote)
        throws IOException
    {
        super(sp);
        this.fd = fd;
        this.fdVal = IOUtil.fdVal(fd);
        this.state = ST_CONNECTED;
        this.localAddress = Net.localAddress(fd);
        this.remoteAddress = remote;
    }

    public long read(ByteBuffer[] dsts, int offset, int length)
        throws IOException
    {
       // 讀資料的邏輯
    }

    public int write(ByteBuffer buf) throws IOException {
     // 寫資料的邏輯
    }
}

register過程

register過程并沒有調用epollCtl方法添加fd到selector當中
register過程真正是儲存fd到待綁定的清單當中
在SelectorImpl中執行pollWrapper.poll(timeout)方法先把fd清單執行epollCtl添加selector當中，在通過epollWait擷取事件到來

public abstract class AbstractSelectableChannel extends SelectableChannel
{
    public final SelectionKey register(Selector sel, int ops,
                                       Object att)
        throws ClosedChannelException
    {
        synchronized (regLock) {
            if (!isOpen())
                throw new ClosedChannelException();
            if ((ops & ~validOps()) != 0)
                throw new IllegalArgumentException();
            if (blocking)
                throw new IllegalBlockingModeException();
            SelectionKey k = findKey(sel);
            if (k != null) {
                k.interestOps(ops);
                k.attach(att);
            }
            if (k == null) {
                // New registration
                synchronized (keyLock) {
                    if (!isOpen())
                        throw new ClosedChannelException();
                    k = ((AbstractSelector)sel).register(this, ops, att);
                    addKey(k);
                }
            }
            return k;
        }
    }
}

abstract class SelectorImpl extends AbstractSelector
{
    protected final SelectionKey register(AbstractSelectableChannel ch,
                                          int ops,
                                          Object attachment)
    {
        if (!(ch instanceof SelChImpl))
            throw new IllegalSelectorException();
        SelectionKeyImpl k = new SelectionKeyImpl((SelChImpl)ch, this);
        k.attach(attachment);
        synchronized (publicKeys) {
            implRegister(k);
        }
        k.interestOps(ops);
        return k;
    }
}

abstract class AbstractPollSelectorImpl extends SelectorImpl
{
    protected void implRegister(SelectionKeyImpl ski) {
        synchronized (closeLock) {
            if (closed)
                throw new ClosedSelectorException();

            // Check to see if the array is large enough
            if (channelArray.length == totalChannels) {
                // Make a larger array
                int newSize = pollWrapper.totalChannels * 2;
                SelectionKeyImpl temp[] = new SelectionKeyImpl[newSize];
                // Copy over
                for (int i=channelOffset; i<totalChannels; i++)
                    temp[i] = channelArray[i];
                channelArray = temp;
                // Grow the NativeObject poll array
                pollWrapper.grow(newSize);
            }
            channelArray[totalChannels] = ski;
            ski.setIndex(totalChannels);
            // 核心的将channel添加到pollWrapper當中
            pollWrapper.addEntry(ski.channel);
            totalChannels++;
            keys.add(ski);
        }
    }
}

class EPollArrayWrapper {
    int poll(long timeout) throws IOException {
        updateRegistrations();
        updated = epollWait(pollArrayAddress, NUM_EPOLLEVENTS, timeout, epfd);
        for (int i=0; i<updated; i++) {
            if (getDescriptor(i) == incomingInterruptFD) {
                interruptedIndex = i;
                interrupted = true;
                break;
            }
        }
        return updated;
    }

    void updateRegistrations() {
        synchronized (updateList) {
            Updator u = null;
            while ((u = updateList.poll()) != null) {
                SelChImpl ch = u.channel;
                if (!ch.isOpen())
                    continue;

                // if the events are 0 then file descriptor is put into "idle
                // set" to prevent it being polled
                if (u.events == 0) {
                    boolean added = idleSet.add(u.channel);
                    // if added to idle set then remove from epoll if registered
                    if (added && (u.opcode == EPOLL_CTL_MOD))
                        epollCtl(epfd, EPOLL_CTL_DEL, ch.getFDVal(), 0);
                } else {
                    // events are specified. If file descriptor was in idle set
                    // it must be re-registered (by converting opcode to ADD)
                    boolean idle = false;
                    if (!idleSet.isEmpty())
                        idle = idleSet.remove(u.channel);
                    int opcode = (idle) ? EPOLL_CTL_ADD : u.opcode;
                    epollCtl(epfd, opcode, ch.getFDVal(), u.events);
                }
            }
        }
    }
}

java NIO 運作原理介紹

開篇

java NIO server demo

ServerSocketChannel和Selector初始化過程

select過程

繼續閱讀

Java String.format方法的簡單使用

neo4j之cypher使用文檔

GitHub連夜封殺！這份阿裡 10W 字内部 Java 字面試手冊到底有多強？

spark/scala關于【資源檔案】加載方法概述外部檔案加載方案測試資源檔案打包入jar包中小結

mybatis_入門程式Mybatis入門

samba伺服器的功能

AOP程式設計_Android優雅權限架構(1)概念基礎，2021金三銀四前言正文大綱正文

Effective Java 8:通用程式設計

【Linux】UDP廣播封包接收速率問題

OOM三種類型

工廠模式-三種類型

【遞歸】高效率求2的n次幂

win10本地scala和spark安裝安裝scala安裝spark

Linux裝置模型（中）之上層容器

scala (3) Function 和 Method

PowerPC平台 Linux移植三
