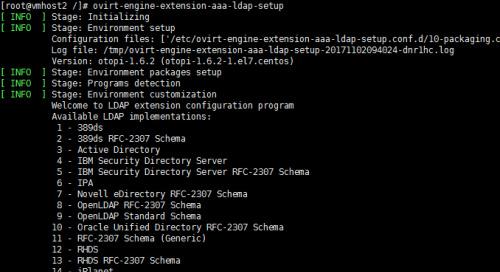

[root@vmhost2 ~]# ovirt-engine-extension-aaa-ldap-setup
[ INFO ] Stage: Initializing
[ INFO ] Stage: Environment setup
Configuration files: ['/etc/ovirt-engine-extension-aaa-ldap-setup.conf.d/10-packaging.conf']
Log file: /tmp/ovirt-engine-extension-aaa-ldap-setup-20180620170724-tufxxa.log
Version: otopi-1.7.7 (otopi-1.7.7-1.el7.centos)
[ INFO ] Stage: Environment packages setup
[ INFO ] Stage: Programs detection
[ INFO ] Stage: Environment customization
Welcome to LDAP extension configuration program
Available LDAP implementations:
1 - 389ds
2 - 389ds RFC-2307 Schema
3 - Active Directory
4 - IBM Security Directory Server
5 - IBM Security Directory Server RFC-2307 Schema
6 - IPA
7 - Novell eDirectory RFC-2307 Schema
8 - OpenLDAP RFC-2307 Schema
9 - OpenLDAP Standard Schema
10 - Oracle Unified Directory RFC-2307 Schema
11 - RFC-2307 Schema (Generic)
12 - RHDS
13 - RHDS RFC-2307 Schema
14 - iPlanet
Please select: 3
Please enter Active Directory Forest name: utek.com
[ INFO ] Resolving Global Catalog SRV record for utek.com
NOTE:
It is highly recommended to use secure protocol to access the LDAP server.
Protocol startTLS is the standard recommended method to do so.
Only in cases in which the startTLS is not supported, fallback to non standard ldaps protocol.
Use plain for test environments only.
Please select protocol to use (startTLS, ldaps, plain) [startTLS]: plain
[ INFO ] Resolving SRV record '域名'
[ INFO ] Connecting to LDAP using 'ldap://r730-srv-01.utek.com:389'
[ INFO ] Connection succeeded
Enter search user DN (for example uid=username,dc=example,dc=com or leave empty for anonymous):管理者賬号@域名
Enter search user password:
[ INFO ] Attempting to bind using '管理者賬号@域名'
Are you going to use Single Sign-On for Virtual Machines (Yes, No) [Yes]:
Profile name has to match domain name, otherwise Single Sign-On for Virtual Machines will not work.
Please specify profile name that will be visible to users [utek.com]:
[ INFO ] Stage: Setup validation
The following files are about to be overwritten:
/etc/ovirt-engine/extensions.d/xxx-authn.properties
/etc/ovirt-engine/extensions.d/xxx.properties
/etc/ovirt-engine/aaa/xxx.properties
Continue and overwrite? (Yes, No) [No]: yes
It is highly recommended to test drive the configuration before applying it into engine.
Login sequence is executed automatically, but it is recommended to also execute Search sequence manually after successful Login sequence.
Please provide credentials to test login flow:
Enter user name: 賬号@域名
Enter user password:
[ INFO ] Executing login sequence...
Login output:
2018-06-20 17:08:29,331+08 INFO ========================================================================
2018-06-20 17:08:29,343+08 INFO ============================ Initialization ============================
2018-06-20 17:08:29,343+08 INFO ========================================================================
2018-06-20 17:08:29,371+08 INFO Loading extension 'xxx-authn'
2018-06-20 17:08:29,427+08 INFO Extension '域名-authn' loaded
2018-06-20 17:08:29,431+08 INFO Loading extension 'utek.com'
2018-06-20 17:08:29,440+08 INFO Extension '域名' loaded
2018-06-20 17:08:29,440+08 INFO Initializing extension 'utek.com-authn'
2018-06-20 17:08:29,441+08 INFO .............................................................................
2018-06-20 17:09:34,873+08 INFO --- End GroupRecord ---
2018-06-20 17:09:34,873+08 INFO --- End PrincipalRecord ---
[ INFO ] Login sequence executed successfully
Please make sure that user details are correct and group membership meets expectations (search for PrincipalRecord and GroupRecord titles).
Abort if output is incorrect.
Select test sequence to execute (Done, Abort, Login, Search) [Done]:
[ INFO ] Stage: Transaction setup
[ INFO ] Stage: Misc configuration
[ INFO ] Stage: Package installation
[ INFO ] Stage: Transaction commit
[ INFO ] Stage: Closing up
CONFIGURATION SUMMARY
Profile name is: utek.com
The following files were created:
[ INFO ] Stage: Clean up
Log file is available at /tmp/ovirt-engine-extension-aaa-ldap-setup-20180620170724-tufxxa.log:
[ INFO ] Stage: Pre-termination
[ INFO ] Stage: Termination
加入域後重新開機服務
service ovirt-engine restart
注：管理者賬号格式 id@域名
參考資料 https://www.ovirt.org/documentation/admin-guide/chap-Users_and_Roles/
