JOYROOM Jiletang is Apple iPhone, iPad and smart phones, tablet computers and other fashion shells, mobile power accessories of the global brand, before the charging head network has dismantled the Jiletang charger, car charging, wireless charging and other accessories, the style is very rich, fully meet the needs of Apple users to buy.
However, this time to dismantle the Jiletang 10000mAh mini magnetic wireless charging mobile power supply is still the first magnetic accessory, charging head network learned that there is only one main control chip in the product - Yingji core IP5568. However, don't underestimate it, it alone can also make this charging treasure support 15W wireless charging, 18W/20W dual-port two-way wired fast charging, LED power display and other functions, very powerful. Let's take a look at what the inside of this product is like.
First, the appearance of jiletang magnetic wireless charging mobile power supply

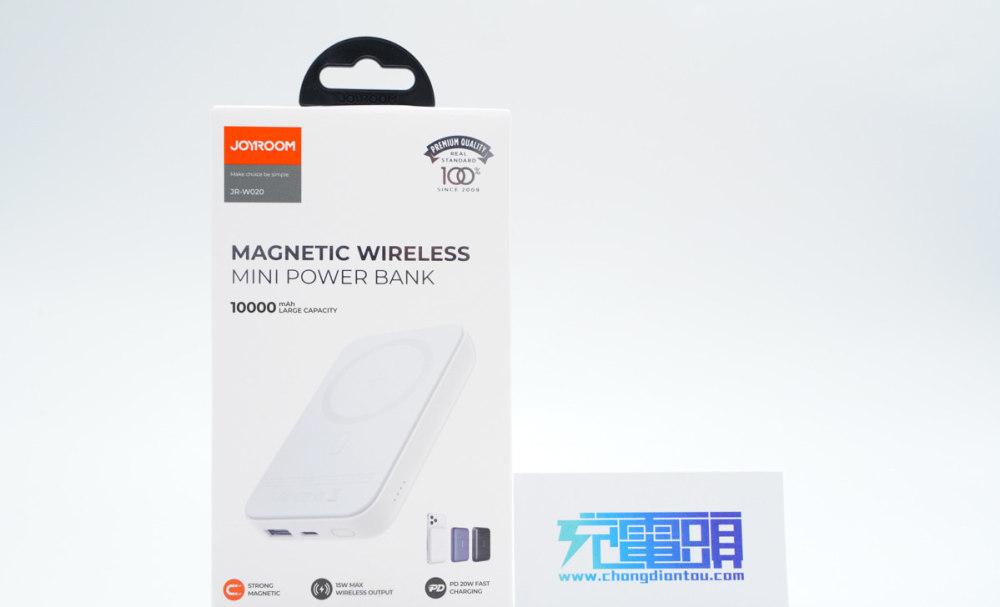

The front of the box is designed with JOYROOM brand, charging treasure name, 10000mAh capacity, appearance drawings (including white, sea blue, black color style small picture), as well as strong magnetic attraction, 15W wireless charging, 20W PD wired fast charging selling point logo, so that consumers can have a very detailed understanding of the product even through the packaging box.
The back side is printed with a product usage scenario diagram and parameters.
Close-up of product parameters.
The package contains a magnetic wireless charging power bank, data cable, storage bag and instruction manual.
The attached cable is A to C shorter and easy to carry and use.
The front and sides of the charging treasure body adopt one-piece white plastic shell, PC fireproof material, surface frosting treatment, and the corners are transitional and rounded.
The JOYROOM logo is printed on the front center.
The back is gray with a color scheme and the straight panel fits the phone well.
This side is equipped with a magnetic module, and the panel is embossed with the position and shape of the module for easy use.
Product parameter information is also printed on the bottom:
Model: JR-W020
Cell capacity: 10000mAh 3.85V(38.5Wh)
USB-C input: 5V2.4A, 9V2A
USB-C输出:5V2.4A、9V2.22A、12V1.67A
USB-A output: 5V3A, 9V2A, 12V1.5A
Wireless charge output: 5W, 7.5W, 10W, 15W (Max)
The top is equipped with a power key and a 1A1C interface to support two-way wired fast charging.
There is an LED battery indicator on the side, and pressing the power button will give a light blue light.
The measured length of the charging treasure is 110.59mm.
The width is 67.67mm.
The thickness is 19.97mm.
Compared with the iPhone 13 Pro Max, the overall is much smaller.
The size of the hand is intuitive.
Net weight is approximately 203g.
The product fits into the Apple iPhone 12/13 mobile phone to carry out magnetic wireless charging normally.
On the back, the charging treasure itself is small and will not block the camera, which takes good care of the experience of playing /shooting while charging.
In addition, it can adsorb the iPhone 13 Pro Max without falling, and the adsorption performance is also very good.
Using the Chargelab POWER-Z KT002, the USB-A port supports Apple 2.4A, Samsung 5V2A, DCP protocol, as well as QC2.0/3.0, FCP, SCP, VOOC/DASH/WARP, and SuperVOOC fast charging protocols.
In addition, the USB-C port measured by KT002 supports QC2.0/3.0, FCP, PD3.0, ppS fast charging protocol.
In addition, it also has three fixed voltage gears of 5V2.4A, 9V2.22A and 12V1.67A, and a set of PPS voltage gears of 3.3-11V2A.
Second, Jiletang magnetic wireless mobile power disassembly
Detach the fuselage case and snap the edges to secure the package.
The magnetic module is fixed by covering the plastic plate.
The wireless charging coil solder foot cover has an insulated tube.
Remove the coil and attach a protective foam to the back.
The wireless charging coil is wound with Leeds wire winding and gluing in the central area.
The PCB board is fixed with screws, the board is attached with a thermal pad, and the bottom of the battery cell is stuffed with foam for cushioning protection.
Remove the screws to remove the PCB board and battery cell, the other side of the board is also pasted with a blue thermal pad to help the main control chip dissipate heat, capacitors, inductors glue reinforcement.
The front of the PCB board is also equipped with a mobile power main control chip, a lithium battery protection chip, and an LED indicator.
A wireless rechargeable capacitor is soldered on the back.
The main control chip of mobile power adopts Yingjixin IP5568, which is an integrated wireless charging TX/RX, QC2.0/QC3.0/SCP output fast charging protocol, FCP/AFC/SFCP input and output fast charging protocol, MTK PE+ 1.1&2.0 output fast charging protocol, USB-C/PD2.0/PD3.0 input and output protocol, USB-C PD3.0 PPS output protocol, compatible with BC1.2/Apple/Samsung mobile phone, synchronous up/down converter, Lithium battery charge management, battery charge indication and other multi-functional power management SOCs provide a complete power solution for fast-charging mobile power.
IP5568 can support USB-A x 2, USB-B, USB-C four USB ports at the same time, use any one USB port alone can support fast charging, and only support 5V output when using two or more output ports at the same time. Ip5568 supports wireless charging and USB port at the same time, the USB port also supports input and output fast charging function.
It is worth mentioning that The INJIXIN IP5568 is the world's first single-chip SoC that integrates 22.5W wired full-protocol fast charging mobile power supply and 15W wireless fast charging, and the charging head network has previously reported in detail on the high-performance high-integration power management SOC of Yingjixin.
In addition, in-house IP5568 has also passed Qi certification. WPC official website page shows that it has passed the latest Qi V1.2.4 version certification, Qi certification ID of 7485, registration type of transmitter, certification type of BPP certification, power 5W. With the blessing of Qi certification, the wireless charging compatibility and security of the product are more secure.
Charging head network learned that Yingji core IP5568 has achieved mass production and listing, but also by Sule 10000mAh magnetic wireless charging mobile power supply, Greenlink 10000mAh magnetic wireless charging mobile power supply, Pengyuansheng 5000mAh 20W magnetic wireless charging mobile power supply, Quanhan 22.5W super fast charging + 15W wireless charging mobile power supply and other products.
In addition, The Yingjixin fast charging chip can also be used in various charging fields such as chargers, car charging, energy storage power supplies, etc., and is used by more than 100 products of well-known brands such as Xiaomi, Beijing Tokyo, Huawei, Samsung, Tesla and so on.
2R2 inductor close-up, with the English core IP5568 voltage regulation, to achieve USB port charge and discharge.
Filtered solid capacitor close-up with 25V 100μF.
MPP resonant capacitor close-up, 404J100V, from GuojinShen.
The LED is close-up.
Power key close-up patch welding.
USB-C female close-up.
USB-A mother seat close-up, sink plate via welding.
Three Core micro XB7608 all-in-one lithium battery protection chip, built-in 14.5mΩ conductive resistance MOS tube, peripheral components only need a capacitor, support overtemperature protection, overcharge protection, support overdischarge protection and short circuit protection, its internal integrated high-precision voltage detection, ultra-low quiescent current.
The battery cell comes from NV Novus New Energy, the battery capacity is 10000mAh, the average voltage is 3.85V, and it belongs to the high voltage cell.
Close-up of thermistor for cell temperature monitoring
All disassembled, let's take a family portrait.
Charging head net disassembly summary
Jiletang this mini magnetic wireless charging mobile power capacity of 10000mAh, it can be said that it has both endurance and small and portable features, it is not easy. In addition, it is also equipped with a 1A1C dual fast charging interface, which supports popular fast charging such as Apple 20W and Huawei 22.5W, which can be done so comprehensively thanks to the use of Yingji core IP5568.
Injixin IP5568 is a very integrated power management SOC, the circuit designed based on the scheme is very simple, in addition, the PCB board size can also be compressed very small, friendly to engineers, and it is also very helpful for the design of small accessories, in addition to the system cost and production cycle is also more advantageous, especially in the case of a lack of cores affected by the epidemic. Yingjixin IP5568 has also passed the qi certification, so the core wireless charging function has good compatibility with mainstream mobile phones on the market.
