阿裡雲 E-HPC
(彈性高性能計算)在最近的釋出中支援多隊列排程以及管理,另外釋出針對多隊列排程自動伸縮的政策支援。
本文主要介紹以下内容
- 多隊列排程的應用背景和應用場景
- E-HPC支援多隊列排程的功能實作
- 介紹各種HPC排程器類型對隊列和節點組是如何配置管理的
- 介紹如何通過OpenApi的方式調用E-HPC多隊列排程相關功能
前言

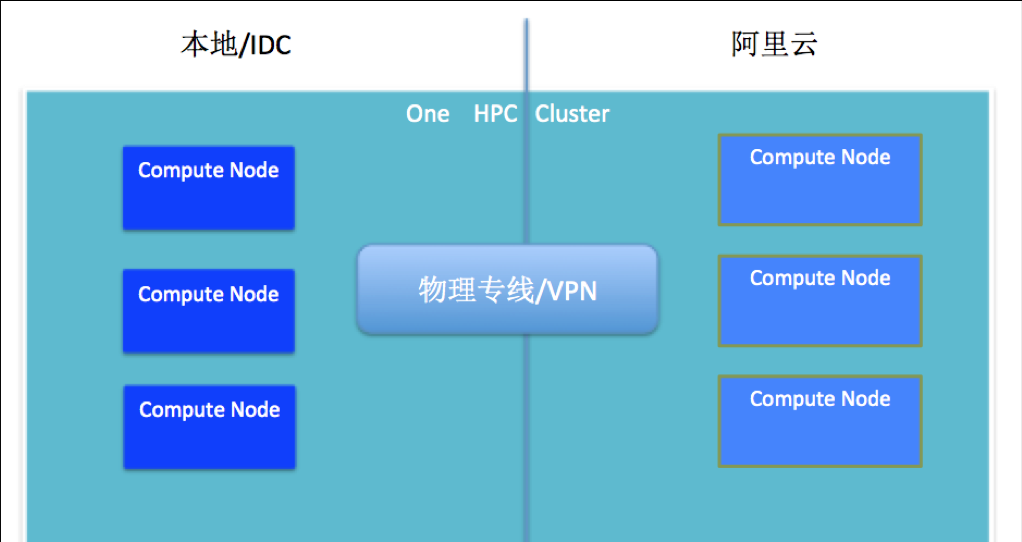

- 傳統的HPC本地叢集遷雲過程中,部分會采用混合雲的模式,例如如下模式,
E-HPC支援多隊列管理和自動伸縮
雲上計算資源規格可能是和本地的計算節點規格不一樣,這就導緻單個叢集裡需要支援多種規格的計算資源,HPC叢集一般會用不同隊列(job queue)或者節點組(node group)來管理不同規格的節點,然後分發作業到不同的隊列以達到區分雲上作業和本地作業;
- 有客戶有需求在一個E-HPC叢集裡面運作不同類型作業,每種類型的作業對資源的需求是不同的,例如前處理作業需要普通8核32GiB記憶體的ECS虛拟機,後端計算性任務需要使用裸金屬伺服器。
E-HPC支援多隊列
E-HPC通過釋出以下功能支援多隊列部署:
- 擴容的時候支援指定新的執行個體規格
- 建立叢集和擴容的時候支援加入指定隊列,如果隊列不存在會自動建立隊列
- 送出作業的時候支援送出到指定的隊列
E-HPC支援多隊列管理和自動伸縮
自動伸縮服務支援多隊列彈性政策的配置,針對每個隊列可以配置如下資訊:
- 自動擴容的執行個體規格
- 擴容付費類型,是按量付費,或者搶占式執行個體
-
如果是搶占式執行個體,出價政策,是系統自動出價還是設定最高價格
其餘的伸縮配置共享叢集全局配置,也可以設定部分隊列啟用自動伸縮,部分隊列不自動伸縮
HPC叢集對多隊列的支援
E-HPC支援建立部署多種HPC排程叢集,不同HPC排程器類型對隊列的支援情形是不同的,這裡做一些簡要的介紹
PBSPro
PBSPro有兩種隊列類型,
- execution: 可執行隊列,作業必須在execution隊列裡才能被分發運作
- routing: 用來分發作業到其他隊列,目标隊列可以是routing或者execution隊列
PBSPro預設會建立execution隊列workq,該隊列預設被建立和啟用, 擴容節點時如果沒有指定queue,隊列workq裡的作業可以分發到該節點計算。
以下是pbspro隊列相關的指令
qmgr -c "create queue high queue_type = execution"
qmgr -c "set queue high started = true"
qmgr -c "set queue high enabled = true"
# 設定節點的隊列資訊為high,将隻能運作隊列high裡的作業
qmgr -c "set node node001 queue = high"
目前E-HPC對PBSPro叢集隊列的管理,都是針對execution隊列
Slurm
Slurm裡對應隊列的概念是partitions,partitions可以認為是節點組,将節點分成多個set;partitions也可以被認為是作業隊列,可以對該partition下運作的作業設定限制,例如作業運作時間限制,使用者權限限制等等。
Slurm預設的partition是comp,所有計算節點都屬于該partition
以下是Slurm關于partition的相關配置
# 建立新的partition,并且指定該partition節點, 但是該配置不是持久化的,重新開機slurmctld服務就會覆寫該配置
scontrol create PartitionName=heavy nodes=compute0
# 通過修改配置檔案的方式
# 打開檔案/opt/slurm/17.02.4/etc/slurm.conf, 可以看到文末的partition配置
PartitionName=comp Nodes=ALL Default=YES MaxTime=INFINITE State=UP
可以添加新的partition,例如
PartitionName=light Nodes=compute0,compute1 Default=YES MaxTime=INFINITE State=UP
# 重新開機slurmctld
system restart slurmctld
LSF/CUBE
LSF或者CUBE的預設隊列是normal, 所有的節點預設加入該隊列,可以配置節點或者節點組加入某個隊列,隊列配置資訊如下
# 打開隊列配置檔案lsb.queues (CUBE的配置路徑是/opt/cubeman/etc, LSF類似)
# 增加如下隊列配置
Begin Queue
QUEUE_NAME = high
PRIORITY = 30
NICE = 20
#QJOB_LIMIT = 60 # job limit of the queue
#UJOB_LIMIT = 5 # job limit per user
#PJOB_LIMIT = 2 # job limit per processor
#RUN_WINDOW = 5:19:00-1:8:30 20:00-8:30
#r1m = 0.7/2.0 # loadSched/loadStop
#r15m = 1.0/2.5
#pg = 4.0/8
#ut = 0.2
#io = 50/240
#CPULIMIT = 180/apple # 3 hours of host apple
#FILELIMIT = 20000
#MEMLIMIT = 5000 # jobs bigger than this (5M) will be niced
#DATALIMIT = 20000 # jobs data segment limit
#STACKLIMIT = 2048
#CORELIMIT = 20000
#PROCLIMIT = 5 # job processor limit
#USERS = all # users who can submit jobs to this queue
HOSTS = high # hostgroup high
#PRE_EXEC = /usr/local/lsf/misc/testq_pre >> /tmp/pre.out
#POST_EXEC = /usr/local/lsf/misc/testq_post |grep -v "Hey"
#REQUEUE_EXIT_VALUES = 55 34 78
DESCRIPTION = For normal low priority jobs, running only if hosts are \
lightly loaded.
End Queue
# 打開hostgroup配置檔案lsb.hosts,最後增加節點組配置(CUBE的配置路徑是/opt/cubeman/etc, LSF類似)
Begin HostGroup
GROUP_NAME GROUP_MEMBER # Key words
high (compute0 compute1) # Define a host group
End HostGroup
# 重新開機服務
service cubeman restart
SGE(Sun Grid Engine)
SGE預設隊列是all.q,預設節點組是@allhosts,所有節點都預設在該節點組
以下是SGE關于隊列的相關配置
# 添加節點組
qconf -ahgrp @high
group_name @high
hostlist compute0 compute1
# 添加隊列
qconf -aq high
指定節點組
hostlist @high
API調用示例
由于部分客戶和合作夥伴是通過OpenAPI和E-HPC對接,這裡介紹一下API如何調用, 以python為示例代碼,其他語言的示例代碼可以通過
OpenAPI Explorer來檢視其他語言的示例代碼
CreateCluster 建立叢集
#!/usr/bin/env python
#coding=utf-8
from aliyunsdkcore.client import AcsClient
from aliyunsdkcore.request import CommonRequest
client = AcsClient('<accessKeyId>', '<accessSecret>','cn-hangzhou')
request = CommonRequest()
request.set_accept_format('json')
request.set_domain('ehpc.cn-hangzhou.aliyuncs.com')
request.set_method('GET')
request.set_version('2018-04-12')
request.set_action_name('CreateCluster')
# 設定隊列,建立的計算節點會被指定為該隊列,該隊列會被自動建立
request.add_query_param('JobQueue', 'high')
# 設定CreateCluster其他參數
......
response = client.do_action_with_exception(request)
AddNodes
#!/usr/bin/env python
#coding=utf-8
from aliyunsdkcore.client import AcsClient
from aliyunsdkcore.request import CommonRequest
client = AcsClient('<accessKeyId>', '<accessSecret>','cn-hangzhou')
request = CommonRequest()
request.set_accept_format('json')
request.set_domain('ehpc.cn-hangzhou.aliyuncs.com')
request.set_method('GET')
request.set_version('2018-04-12')
request.set_action_name('AddNodes')
# 設定隊列,新擴容的計算節點會被指定為該隊列,該隊列如果不存在會被自動建立
request.add_query_param('JobQueue', 'high')
# 設定AddNodes其他參數
......
response = client.do_action_with_exception(request)
ListQueues
新增API用于查詢叢集隊列清單
#!/usr/bin/env python
#coding=utf-8
from aliyunsdkcore.client import AcsClient
from aliyunsdkcore.request import CommonRequest
client = AcsClient('<accessKeyId>', '<accessSecret>','cn-hangzhou')
request = CommonRequest()
request.set_accept_format('json')
request.set_domain('ehpc.cn-hangzhou.aliyuncs.com')
request.set_method('GET')
request.set_version('2018-04-12')
request.set_action_name('ListQueues')
request.add_query_param('RegionId', 'cn-hangzhou')
request.add_query_param('ClusterId', '<clusterId>')
response = client.do_action_with_exception(request)
SubmitJob
#!/usr/bin/env python
#coding=utf-8
from aliyunsdkcore.client import AcsClient
from aliyunsdkcore.request import CommonRequest
client = AcsClient('<accessKeyId>', '<accessSecret>','cn-hangzhou')
request = CommonRequest()
request.set_accept_format('json')
request.set_domain('ehpc.cn-hangzhou.aliyuncs.com')
request.set_method('GET')
request.set_version('2018-04-12')
request.set_action_name('SubmitJob')
# 指定作業送出到該隊列中
request.add_query_param('JobQueue', 'high')
# 設定SubmitJob其他參數
......
response = client.do_action_with_exception(request)
SetAutoScaleConfig
#!/usr/bin/env python
#coding=utf-8
from aliyunsdkcore.client import AcsClient
from aliyunsdkcore.request import CommonRequest
client = AcsClient('<accessKeyId>', '<accessSecret>','cn-hangzhou')
request = CommonRequest()
request.set_accept_format('json')
request.set_domain('ehpc.cn-hangzhou.aliyuncs.com')
request.set_method('GET')
request.set_version('2018-04-12')
request.set_action_name('SetAutoScaleConfig')
# 對于隊列high,設定擴容執行個體規格為GPU執行個體ecs.gn6v-c8g1.8xlargee,按量付費
request.add_query_param('Queues.1.QueueName', 'high')
request.add_query_param('Queues.1.InstanceType', 'ecs.gn6v-c8g1.8xlarge')
request.add_query_param('Queues.1.SpotStrategy', 'NoSpot')
request.add_query_param('Queues.1.SpotPriceLimit', '0')
# 對于隊列low,設定擴容執行個體規格為ecs.g5.large,擴容搶占式執行個體,最高出價為0.1
request.add_query_param('Queues.2.QueueName', 'low')
request.add_query_param('Queues.2.InstanceType', 'ecs.g5.large')
request.add_query_param('Queues.2.SpotStrategy', 'SpotWithPriceLimit')
request.add_query_param('Queues.2.SpotPriceLimit', '0.1')
# 設定SetAutoScaleConfig其他參數
......
response = client.do_action_with_exception(request)
LSF/CUBE叢集的額外設定
LSF/CUBE由于需要license,在建立好叢集之後,需要使用者手動配置license認證,然後手動配置隊列和節點組資訊,配置方法在上述章節已經提及,然後後續擴容節點或者自動伸縮就可以做到自動化多隊列管理
