Intel has finally brought the 12th generation of Core to the mobile platform, and the lineup is larger than ever.

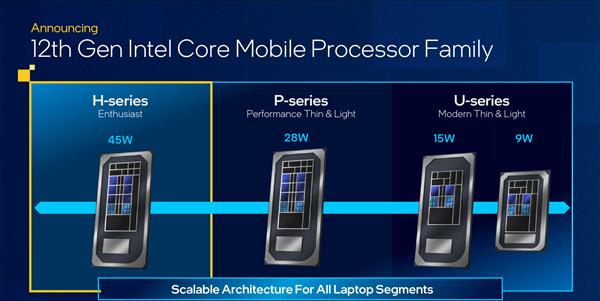

This time, the 12th generation Core Mobile Edition is divided into three categories: the 45W H series for the main game book, the 28W P series for the all-rounder, and the 15/9W U series for the thin and light book, with a total of 28 models, and the actual product model naming is also very unique.
45W H series is known as the world's fastest mobile processor, the world's best mobile platform, 50×25× 1.3mm BGA integrated package, up to 6 large 8 small 14 cores, memory support DDR5-4800, DDR4-3200, LPDDR5-5200, LPDDR4X-4267.
Extended connectivity is abundant, PCIe 4.0 x8 for discrete graphics, two PCIe 4.0 x4 for SSDs, PCIe 3.0 x12 for extended peripherals, four Thunderbolts 4 40Gbps, four USB 3, 10 USB 2, Wi-Fi 6E (Killer AX1675/AX1690), HDMI 2.0b, DisplayPort 1.4b.
If paired with its own Arc series graphics card, it also supports Deep Link technology, which can share and dynamically allocate power consumption to obtain targeted maximum CPU or GPU performance, and also support Hyper Encode video encoding and Additive AI acceleration.
The first eight models of the H series have a standard power consumption of 45W.
The top i9-12900HK and i9-12900H are all 6 big 8 small 14 core 20 threads, 24MB L3 cache, large core frequency 2.5-5.0GHz, small core frequency 1.8-3.8GHz, integrated core display 96 units, 1.45GHz, maximum acceleration power consumption up to 115W.
Of course, the i9-12900HK continues to support overclocking.
i7-12800H, i7-12700H is also 6 big 8 small, compared to the i9 series is actually reduced frequency, i7-12650H has become 6 big 4 small 10 core 16 threads, the core display is also reduced to 64 units.
i5-12600H, i5-12500H are 4 big 8 small 12 core 16 threads, 18MB level three cache, at first glance the number of cores is more than i7-12650H, but because the large core is more, the actual performance is better, the core display of 80 units is also higher than i7-12650H, and the maximum power consumption is limited to 95W.
The i5-12450H continues to be reduced to 4 large, 4 small, 8 cores, 12 threads, and the kernel display is further reduced to 48 units.
In terms of performance, the official claim that the i9-12900HK can easily crush the AMD Ryzen™ 9 5900HX and Apple M1 Max, which is up to 28% higher than the previous generation of i9-1180HK game performance.
The hybrid architecture of large and small cores is also deeply optimized for the game, including physics, animation, and AI aspects, such as Killer 3, which can be improved by up to 8%.
Content creation performance has also been greatly improved, especially SincetBench has increased by 44% compared to the previous generation.
The 12th generation H series of games will have more than 100 designs, including Acer, Dell, Gigabyte, HP, Lenovo, MSI, Razer, ROG and other major brands.
The first six models of the P series have a standard power consumption of 28W, the maximum acceleration power consumption is 64W, and the four-digit number is named.
i7-1280P6 Big 8 Small 14 Core 20 Threads, L3 Cache 24MB, Large Core Frequency 1.8-4.8GHz, Small Core Frequency 1.3-3.6GHz, Integrated Core Display 96 Unit 1.45GHz.
i7-1270P, i7-1260P has become 4 large 8 small 12 core 16 threads, level 3 cache 18MB, the reason why also classified into the i7 series is because the kernel display is still 96 units.
i5-1250P, i5-1240P is also 4 large 8 small 12 cores, the three-level cache is only 12MB, the core display is reduced to 80 units.
The i3-1220P is 2 large, 8 small, 10 cores, 12 threads, the L3 cache is still 12MB, and the kernel display is further reduced to 64 units.
The first seven models of the 15W U series, including Pentium and Celeron, the standard power consumption is 15W, and the maximum acceleration is 55W, which is also named after a four-digit number.
i7-1265U, i7-1255U are 2 large 8 small 10 core 12 threads, the highest acceleration frequency of 4.8GHz, integrated core display 96 units 1.5GHz.
i5-1245U, i5-1235U are also 2 large 8 small 10 cores, the core is reduced to 80 units.
The i3-1215U CPU core came to 2 large 4 small 6 cores 8 threads, and the core display continued to be reduced to 64 units.
The Pentium 8505 and Celeron 7305 are both 1 big 4 small 5 core 6 threads, the core display is only 48 units, and the Celeron 7305 does not support turbo acceleration.
To some extent, they can be seen as the successors to Lakefield, Intel's first hybrid architecture product, both of which are 1 big, 4 small and 5 cores.
The 9W U series is also seven models, with a standard power consumption of 9W and a maximum acceleration of 29W.
Compared with the 15W U series, it is to reduce the frequency, especially the reference frequency, the large core is only 1.0-1.1GHz, and the small core is only 700-800MHz.
The model name is similar, except that the number ending 5 is changed to 0, which is called i7-1260U, i7-1250U, i5-1240U, i5-1230U, i3-1210U, Pentium 8500, Celeron 7300.
