How to Install and Use Ansible on Ubuntu 16.04

By Hitesh Jethva, Alibaba Cloud Tech Share

Author

Ansible is a free and open source configuration management system that allows you to automatically deploy and centrally manage your applications. You can easily manage and control large numbers of servers from central location using Ansible. Ansible is a great alternative solution of Chef and Puppet because it has a much smaller overhead to get started. Ansible uses SSH channels to retrieve information from remote system, so you does not require any additional software to be installed on the client computers.

This tutorial will walk you through the step by step instruction of how to install and use Ansible on an

Alibaba Cloud ECS Ubuntu 16.04 server.

Prerequisites

  • Two instance with Ubuntu 16.04 installed.
  • A static IP address 192.168.0.103 is configured on server node.
  • A static IP address 192.168.0.104 is configured on client node.
  • Root password is configured on each node.

Launch Alibaba Cloud ECS instance

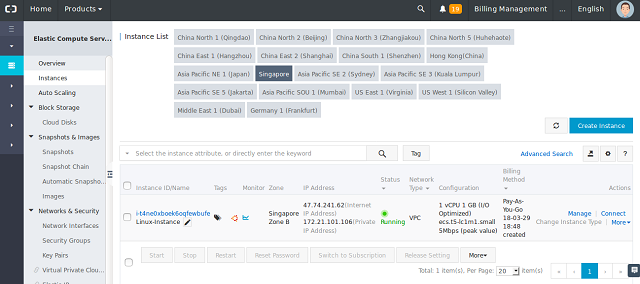

First, Login to your

https://ecs.console.aliyun.com/?spm=a3c0i.o25424en.a3.13.388d499ep38sz

x">Alibaba Cloud ECS Console. You will be redirected to the main dashboard. You will need to navigate to your

ECS instance

by selecting the appropriate region. For this tutorial, I have created my

ECS instances

in the Singapore region.

How to Install and Use Ansible on Ubuntu 16.04

If you haven't created an instance, you can check out

this tutorial

or follow the steps on this

quick start guide

. You will need to have two running

, preferably on the same region.

Note that I have set up my

with SSH key pairs as credential. This allows me to connect to the instances using SSH.

Install Ansible

By default, Ansible is not available in Ubuntu 16.04 repository. So you will need to add Ansible personal repository to on the server node. You can add the repository using the following command:

apt-add-repository ppa:ansible/ansible

You should see the following output:

Ansible is a radically simple IT automation platform that makes your applications and systems easier to deploy. Avoid writing scripts or custom code to deploy and update your applications— automate in a language that approaches plain English, using SSH, with no agents to install on remote systems.     http://ansible.com/      More info: https://launchpad.net/~ansible/+archive/ubuntu/ansible     Press [ENTER] to continue or ctrl-c to cancel adding it     gpg: keyring `/tmp/tmpiylu9n1t/secring.gpg' created     gpg: keyring `/tmp/tmpiylu9n1t/pubring.gpg' created     gpg: requesting key 7BB9C367 from hkp server keyserver.ubuntu.com     gpg: /tmp/tmpiylu9n1t/trustdb.gpg: trustdb created     gpg: key 7BB9C367: public key "Launchpad PPA for Ansible, Inc." imported     gpg: Total number processed: 1     gpg:               imported: 1  (RSA: 1)     OK

After adding the Ansible repository, you will need to update the system so that repository will be added to the system. Run the following command to update the system:

apt-get update -y

Once the repository is updated, install Ansible with the following command:

apt-get install ansible -y

Configure Ansible Host

Ansible keeps track of all of the server nodes and client nodes using a hosts file. So you will need to configure this file before communicate with our other nodes.

First, open the file with the following command:

nano /etc/ansible/hosts

You should see all the commented lines. Here, you will need to add all the client nodes which you want to manage as shown below:

[servers]     client-node ansible_ssh_host=192.168.0.104

Save and close the file when you are finished.

Setup SSH Keys for Remote Hosts

Ansible uses SSH to communicate with other nodes. So you will need to generate an SSH key on server node and copy the ssh keys to the client node.

On the server node, run the following command to create an SSH key:

ssh-keygen -t rsa -b 4096

Generating public/private rsa key pair.     Enter file in which to save the key (/root/.ssh/id_rsa):      Enter passphrase (empty for no passphrase):      Enter same passphrase again:      Your identification has been saved in /root/.ssh/id_rsa.     Your public key has been saved in /root/.ssh/id_rsa.pub.     The key fingerprint is:     SHA256:3FvzXmI3EhW7idSZy+ITzW7UrefZP/R5AYx2VBu3ytU root@server-node     The key's randomart image is:     +---[RSA 4096]----+     |              .+.|     |             .. @|     |            +. XE|     |       . . oo+O *|     |        S o +B.Oo|     |           o.o*+ |     |          .  +*+B|     |             o+O*|     |              ..B|     +----[SHA256]-----+

Next, copy the created key to the client node with the following command:

ssh-copy-id [email protected]

Next, perform an ssh key authentication on client node to check whether authentication working or not.

ssh [email protected]

You should not be prompted for a password if you have set this up correctly.

Test Ansible

Once everything is configured properly, it's time to test Ansible.

First, run the following command to ping all the client node which you have specified in hosts file:

ansible –m ping all

If your client node is up, then you should see the following output:

client-node | SUCCESS => {         "changed": false,          "failed": false,          "ping": "pong"     }

Note: "all" means if you have specify multiple host in hosts file then the above command execute ping command on all the hosts.

You can also execute ping command on single host or group of hosts with the following command:

ansible -m ping client-node     ansible -m ping servers

If you want to find out the memory usage on client node, run the following command:

ansible -m shell -a 'free -m' client-node

client-node | SUCCESS | rc=0 >>                  total       used       free     shared    buffers     cached     Mem:          3835       3185        649        177         77        929     -/+ buffers/cache:       2179       1656     Swap:        10793          0      10793

To check the partition size of the client node, run the following command:

ansible -m shell -a 'df -h' client-node

Output:

client-node | SUCCESS | rc=0 >>     Filesystem      Size  Used Avail Use% Mounted on     /dev/sda4        92G   27G   61G  31% /     none            4.0K     0  4.0K   0% /sys/fs/cgroup     udev            1.9G  4.0K  1.9G   1% /dev     tmpfs           384M  1.2M  383M   1% /run     none            5.0M     0  5.0M   0% /run/lock     none            1.9G  1.9M  1.9G   1% /run/shm     none            100M   44K  100M   1% /run/user     /dev/sda5       353G   75G  261G  23% /Data

Conclusion

Congratulations! You have successfully configured Ansible on your

Alibaba Cloud ECS server

. You can now easily manage multiple server by executing single command from central location.
