利用規則引擎的M2M實作裝置之間關聯

利用M2M實作裝置之間關聯

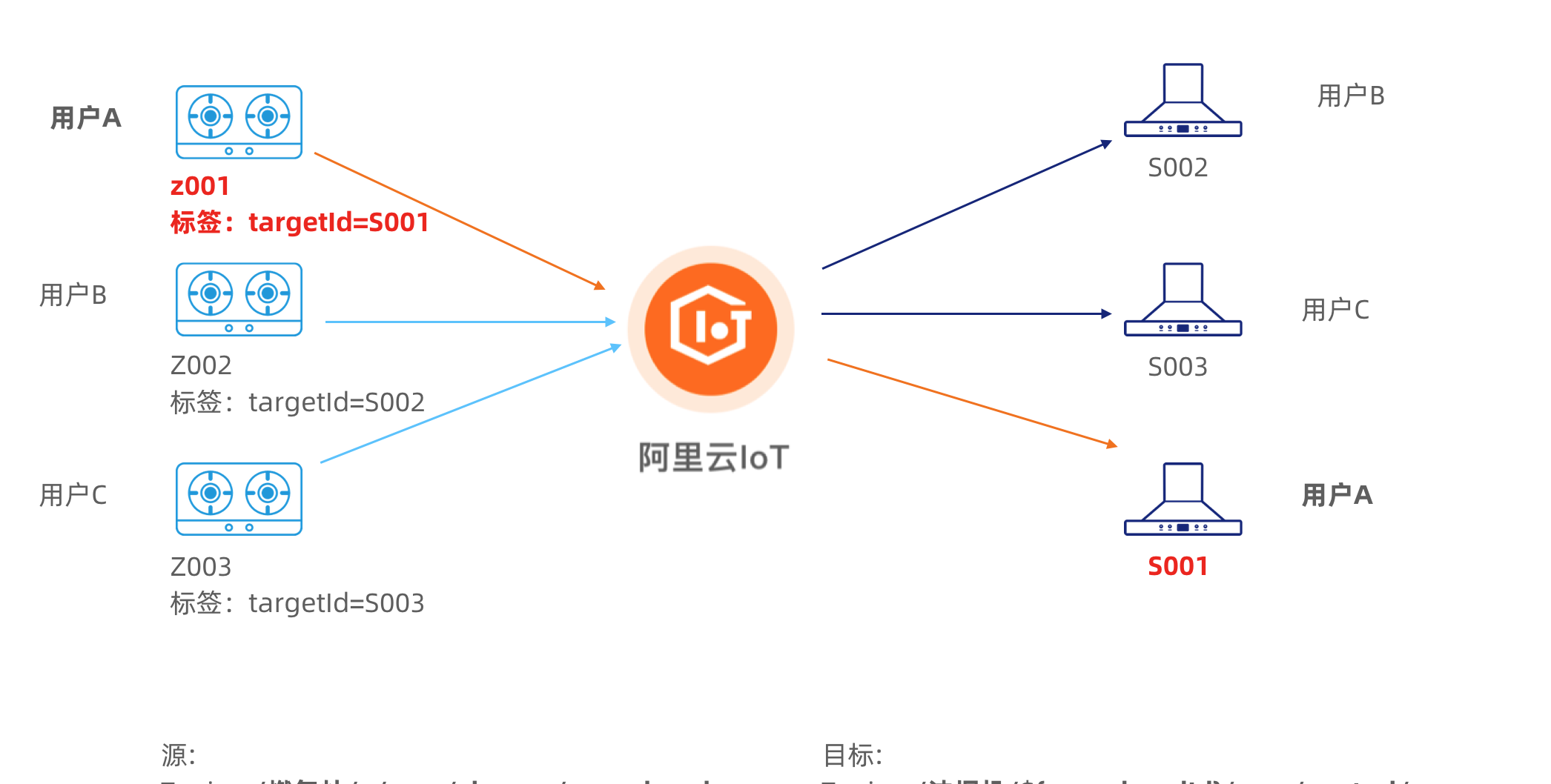

方案設計

基于IoT物聯網平台中規則引擎的M2M能力，我們可以實作裝置間關聯通信，技術方案如下：

1.建立産品

1.1 油煙機

建立裝置

通信Topic

1.2 瓦斯竈

2.注冊裝置

2.1 油煙機裝置

2.2 瓦斯竈裝置

注冊裝置，并綁定目标油煙機

3.規則引擎配置 M2M規則

3.1 處理資料

SELECT
attribute('targetId') as rangehoodId,
status,
windPower
FROM
"/a****h/+/user/change/rangehood"

3.2 轉發資料

4.裝置開發

4.1 油煙機裝置

裝置端開發

const mqtt = require('aliyun-iot-mqtt');

var options = {
    productKey: "替換",
    deviceName: "替換",
    deviceSecret: "替換",
    regionId: "cn-shanghai"
};

//建立連接配接
const client = mqtt.getAliyunIotMqttClient(options);

client.subscribe(`/${options.productKey}/${options.deviceName}/user/control/params`)
client.on('message', function(topic, message) {
    console.log("sub topic => " + topic)
    console.log("message => " + message)
})


4.2 瓦斯竈裝置

const mqtt = require('aliyun-iot-mqtt');

var options = {
    productKey: "替換",
    deviceName: "替換",
    deviceSecret: "替換",
    regionId: "cn-shanghai"
};
var pubTopic = `/${options.productKey}/${options.deviceName}/user/change/rangehood`;
//建立連接配接
const client = mqtt.getAliyunIotMqttClient(options);

//上報資料
client.publish(pubTopic, getPostData(), { qos: 0 });

function getPostData() {
    const payloadJson = {
        status: "on", //on,off
        windPower: "high" //low,middle,high
    }
    console.log("Pub Topic => " + pubTopic)
    console.log("Payload => " + JSON.stringify(payloadJson))
    return JSON.stringify(payloadJson);
}


5.聯機運作

5.1 裝置啟動

油煙機

$ node range-hood.js

sub topic => /a1zTlSPM9Ni/s001/user/control/params
message => {"windPower":"high","rangehoodId":"s001","status":"on"}


瓦斯竈

$ node gas-stove.js

Pub Topic => /a****h/z001/user/change/rangehood
Payload => {"status":"on","windPower":"high"}


5.2 裝置運作日志
