政治正确非常重要，对于数据库来说亦如此，一个基于流复制的HA架构的集群，如果还有一堆只读节点，当HA集群发生了主备切换后，这些只读节点能否与新的主节点保持同步关系（类似与政治正确），很重要。
基于流复制的主从库模式，主库和从库都可以归档WAL日志。如果使用的是异步复制，主库和从库可能存在一定的WAL差异，如果从库激活，会启用新的时间线。
意味着老的时间线上的WAL并没有全部同步到新的主库新的时间线上。归档也会存在差异。
如何配置PITR恢复，才不会走老路，一直紧跟新的时间线呢？
取决于PITR时，在走错WAL前，是否先发现新时间线的HISTORY文件。
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E4%BE%8B%E5%AD%90 例子

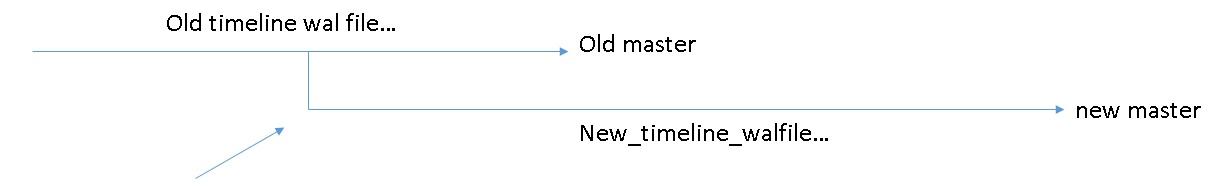

图
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E6%B5%8B%E8%AF%95%E7%8E%AF%E5%A2%83 测试环境
单一主机，不同实例使用不同监听端口。
1、主库端口8001（TL=1）
/data01/digoal/pg_root8001
2、从库1端口8000（激活后，TL=2）
/data01/digoal/pg_root8000
3、PITR实例端口8002（使用restore_command，一直恢复到最新TL）
/data01/digoal/pg_root8002
4、从库1激活后，基于它创建的从库2端口8003（激活后，TL=3）
/data01/digoal/pg_root8003
5、归档目录
/data01/digoal/wal
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E7%8E%AF%E5%A2%83%E5%8F%98%E9%87%8F 环境变量
.bash_profile
export PS1="$USER@`/bin/hostname -s`-> "
export PGPORT=8001
export PGDATA=/data01/digoal/pg_root$PGPORT
export LANG=en_US.utf8
export PGHOME=/home/digoal/pgsql11.1
export LD_LIBRARY_PATH=$PGHOME/lib:/lib64:/usr/lib64:/usr/local/lib64:/lib:/usr/lib:/usr/local/lib:$LD_LIBRARY_PATH
export DATE=`date +"%Y%m%d%H%M"`
export PATH=$PGHOME/bin:$PATH:.
export MANPATH=$PGHOME/share/man:$MANPATH
export PGHOST=$PGDATA
export PGUSER=postgres
export PGDATABASE=postgres
alias rm='rm -i'
alias ll='ls -lh'
unalias vi
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E5%BB%BA%E4%B8%BB%E5%BA%93 建主库
initdb -D $PGDATA -U postgres -E UTF8 --lc-collate=C --lc-ctype=en_US.utf8
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E9%85%8D%E7%BD%AE%E5%8F%82%E6%95%B0 配置参数
postgresql.conf
本例测试场景的关键配置
listen_addresses = '0.0.0.0'
port = 8001
max_connections = 1000
unix_socket_directories = '.,/tmp'
max_worker_processes = 128
wal_level = replica
archive_mode = on # 如果配置为always 则从库也归档日志
archive_command = 'cp -n %p /data01/digoal/wal/%f' # 拷贝WAL到指定目录, 包括激活时产生的 partial，history 文件，-n 避免重复拷贝
max_wal_senders = 8
hot_standby = on
wal_receiver_status_interval = 1s
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E9%85%8D%E7%BD%AEhba 配置HBA
pg_hba.conf
确保流复制可用
# "local" is for Unix domain socket connections only
local all all trust
# IPv4 local connections:
host all all 127.0.0.1/32 trust
# IPv6 local connections:
host all all ::1/128 trust
# Allow replication connections from localhost, by a user with the
# replication privilege.
local replication all trust
host replication all 127.0.0.1/32 trust
host replication all ::1/128 trust
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E9%85%8D%E7%BD%AErecoverydone 配置recovery.done
recovery.done
restore_command = 'cp /data01/digoal/wal/%f %p'
recovery_target_timeline = 'latest'
standby_mode = on
primary_conninfo = 'host=localhost port=8001 user=postgres'
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E5%88%9B%E5%BB%BA%E4%BB%8E%E5%BA%931 创建从库1
pg_basebackup -D /data01/digoal/pg_root8000 -F p -c fast -h 127.0.0.1 -p 8001 -U postgres
postgresql.conf
port = 8000
改recovery.done文件名
mv recovery.done recovery.conf
启动从库1
pg_ctl start -D /data01/digoal/pg_root8000
确保主从开始正常同步
查询主库
postgres=# select * from pg_stat_replication ;
所有实例（主，从）将wal归档到同一个ftp目录或NAS目录，方便PITR恢复时取文件。
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E5%A4%87%E4%BB%BD%E4%B8%BB%E5%BA%93 备份主库
pg_basebackup -D /data01/digoal/pg_root8002 -F p -c fast -h 127.0.0.1 -p 8001 -U postgres
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E5%8E%8B%E6%B5%8B%E4%B8%BB%E5%BA%93 压测主库
pgbench -i -s 100
pgbench -M prepared -n -r -P 1 -c 16 -j 16 -T 30
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E7%A1%AE%E4%BF%9D%E4%B8%BB%E4%BB%8E%E5%90%8C%E6%AD%A5 确保主从同步
查询主库，确保主从WAL完全已同步
postgres=# select * from pg_stat_replication ;
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E6%BF%80%E6%B4%BB%E4%BB%8E%E5%BA%931 激活从库1
激活从库，从库变可读可写，脱离于主库的同步关系。
pg_ctl promote -D /data01/digoal/pg_root8000
从库采用新时间线2
digoal@pg11-test-> pg_controldata -D /data01/digoal/pg_root8000|grep -i timeline
Latest checkpoint's TimeLineID: 2
Latest checkpoint's PrevTimeLineID: 2
Min recovery ending loc's timeline: 0
老的主库依旧在使用TL 1
digoal@pg11-test-> pg_controldata -D /data01/digoal/pg_root8001|grep -i timeline
Latest checkpoint's TimeLineID: 1
Latest checkpoint's PrevTimeLineID: 1
Min recovery ending loc's timeline: 0
激活时，产生的文件
cd /data01/digoal/pg_root8000/pg_wal
三个文件：
patial
history
新时间线WAL文件
如下：
-rw------- 1 digoal digoal 42 Jan 20 18:11 00000002.history
-rw------- 1 digoal digoal 16M Jan 20 18:11 000000010000000200000058.partial
-rw------- 1 digoal digoal 16M Jan 20 18:11 000000020000000200000058
主库上，有一个文件000000010000000200000058，是完整的。这里激活从库时，000000010000000200000058文件还没有写完，所以会生成一个000000010000000200000058.partial文件，与主库上的文件名不冲突，同时生成一个新时间线文件00000002.history，这个文件中记录了这个时间线是从哪个WAL位置开始生成的。
另外，新时间线下的WAL会从000000010000000200000058.partial中拷贝已写内容，并以新时间线重新命名，前8个字符以新时间线开始，由于时间线不一样，文件名与老的主库也不会冲突。
时间线文件内容
digoal@pg11-test-> cat 00000002.history
1 2/58FE0B80 no recovery target specified
老时间线下的partial wal，以及新时间线下的WAL文件
digoal@pg11-test-> md5sum 000000010000000200000058.partial
163531112a802bb152e7a57c9b06d62d 000000010000000200000058.partial
digoal@pg11-test-> md5sum 000000020000000200000058
1b4e44ffa9e3f5025ddb260a1d117f5e 000000020000000200000058
老主库的000000010000000200000058文件，由于后面还继续在写老主库，所以时间线1上，还有其他WAL文件产生，与TL2产生了WAL分歧。
digoal@pg11-test-> md5sum 000000010000000200000058
e0193410858e5f0440d1a3f9404edcd4 000000010000000200000058
注意，激活从库时，这个激活时的WAL文件，partial内容（部分内容，即在TL1上产生的WAL内容）在三个文件中是一致的。
从库1：
digoal@pg11-test-> pg_waldump 000000010000000200000058.partial|head -n 5
rmgr: Heap2 len (rec/tot): 58/ 58, tx: 0, lsn: 2/58000030, prev 2/57FFFFB8, desc: CLEAN remxid 130039429, blkref #0: rel 1663/13285/16515 blk 26035
rmgr: Heap len (rec/tot): 72/ 72, tx: 130184523, lsn: 2/58000070, prev 2/58000030, desc: HOT_UPDATE off 114 xmax 130184523 ; new off 115 xmax 130184523, blkref #0: rel 1663/13285/16516 blk 48
rmgr: Heap len (rec/tot): 74/ 74, tx: 130184538, lsn: 2/580000B8, prev 2/58000070, desc: HOT_UPDATE off 9 xmax 130184538 ; new off 88 xmax 0, blkref #0: rel 1663/13285/16515 blk 26035
rmgr: Heap len (rec/tot): 72/ 72, tx: 130184530, lsn: 2/58000108, prev 2/580000B8, desc: HOT_UPDATE off 107 xmax 130184530 ; new off 116 xmax 0, blkref #0: rel 1663/13285/16516 blk 48
rmgr: Heap len (rec/tot): 72/ 72, tx: 130184531, lsn: 2/58000150, prev 2/58000108, desc: HOT_UPDATE off 113 xmax 130184531 ; new off 117 xmax 0, blkref #0: rel 1663/13285/16516 blk 48
digoal@pg11-test-> pg_waldump 000000020000000200000058|head -n 5
rmgr: Heap2 len (rec/tot): 58/ 58, tx: 0, lsn: 2/58000030, prev 2/57FFFFB8, desc: CLEAN remxid 130039429, blkref #0: rel 1663/13285/16515 blk 26035
rmgr: Heap len (rec/tot): 72/ 72, tx: 130184523, lsn: 2/58000070, prev 2/58000030, desc: HOT_UPDATE off 114 xmax 130184523 ; new off 115 xmax 130184523, blkref #0: rel 1663/13285/16516 blk 48
rmgr: Heap len (rec/tot): 74/ 74, tx: 130184538, lsn: 2/580000B8, prev 2/58000070, desc: HOT_UPDATE off 9 xmax 130184538 ; new off 88 xmax 0, blkref #0: rel 1663/13285/16515 blk 26035
rmgr: Heap len (rec/tot): 72/ 72, tx: 130184530, lsn: 2/58000108, prev 2/580000B8, desc: HOT_UPDATE off 107 xmax 130184530 ; new off 116 xmax 0, blkref #0: rel 1663/13285/16516 blk 48
rmgr: Heap len (rec/tot): 72/ 72, tx: 130184531, lsn: 2/58000150, prev 2/58000108, desc: HOT_UPDATE off 113 xmax 130184531 ; new off 117 xmax 0, blkref #0: rel 1663/13285/16516 blk 48
老主库：
digoal@pg11-test-> pg_waldump 000000010000000200000058|head -n 5
rmgr: Heap2 len (rec/tot): 58/ 58, tx: 0, lsn: 2/58000030, prev 2/57FFFFB8, desc: CLEAN remxid 130039429, blkref #0: rel 1663/13285/16515 blk 26035
rmgr: Heap len (rec/tot): 72/ 72, tx: 130184523, lsn: 2/58000070, prev 2/58000030, desc: HOT_UPDATE off 114 xmax 130184523 ; new off 115 xmax 130184523, blkref #0: rel 1663/13285/16516 blk 48
rmgr: Heap len (rec/tot): 74/ 74, tx: 130184538, lsn: 2/580000B8, prev 2/58000070, desc: HOT_UPDATE off 9 xmax 130184538 ; new off 88 xmax 0, blkref #0: rel 1663/13285/16515 blk 26035
rmgr: Heap len (rec/tot): 72/ 72, tx: 130184530, lsn: 2/58000108, prev 2/580000B8, desc: HOT_UPDATE off 107 xmax 130184530 ; new off 116 xmax 0, blkref #0: rel 1663/13285/16516 blk 48
rmgr: Heap len (rec/tot): 72/ 72, tx: 130184531, lsn: 2/58000150, prev 2/58000108, desc: HOT_UPDATE off 113 xmax 130184531 ; new off 117 xmax 0, blkref #0: rel 1663/13285/16516 blk 48
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E7%BB%A7%E7%BB%AD%E5%8E%8B%E6%B5%8B%E8%80%81%E4%B8%BB%E5%BA%93%E6%96%B0%E4%B8%BB%E5%BA%93 继续压测老主库，新主库
让老主库在TL1上，新主库在TL2时间线上，都继续产生WAL文件，在两个时间线上继续产生WAL文件。
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#pitr%E6%81%A2%E5%A4%8D%E9%AA%8C%E8%AF%81%E4%BB%8E%E5%A4%87%E4%BB%BD%E6%81%A2%E5%A4%8D%E5%88%B0%E6%96%B0%E6%97%B6%E9%97%B4%E7%BA%BF PITR恢复验证，从备份恢复到新时间线
从TL1的备份集恢复，持续恢复到TL2。
机制：restore_command 如果发现history 文件，则优先拷贝partial文件，走新时间线分支。因此会采用000000010000000200000058.partial 而不会采用 000000010000000200000058
配置 recovery.conf 时，必须禁止primary_conninfo连接到老主库，否则会走TL1的时间线，并出现分歧后，走不到TL2这个时间线。只能使用restore_command来进行恢复，才能走到TL2的时间线。
原因很简单，因为使用流的方式，会把整个WAL文件都接收完，从而走上老路。而实际上应该使用TL2时间线开端（即激活时刻）的WAL文件（这个WAL文件只有部分内容是TL1的，剩余的内容是激活后产生的）。
recovery.conf
restore_command = 'cp /data01/digoal/wal/%f %p'
recovery_target_timeline = 'latest' # 这一条一定要配置，才会走新时间线
standby_mode = on
# primary_conninfo = 'host=localhost port=8001 user=postgres' # 注释这一条即可，或者改成指向新的主库，但是建议不要改，直接注释最好，因为主备可能经常切换。
如果就只想恢复到老时间线怎么做？配置recovery_target_timeline即可。
什么情况下，会走错时间线？
1、流式恢复，并连接了老的主库
2、将老的主库的切换时的wal文件拷贝到了目标集的pg_wal目录（例如本例的000000010000000200000058文件）
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E9%85%8D%E7%BD%AEpitr 配置PITR
cd /data01/digoal/pg_root8002
postgresql.conf
port = 8002
mv recovery.done recovery.conf
修改内容
recovery.conf
restore_command = 'cp /data01/digoal/wal/%f %p'
recovery_target_timeline = 'latest' # 这一条一定要配置，才会走新时间线
standby_mode = on
# primary_conninfo = 'host=localhost port=8001 user=postgres' # 注释这一条即可，或者改成指向新的主库，但是建议不要改，直接注释最好，因为主备可能经常切换。
启动PITR恢复实例
pg_ctl start -D /data01/digoal/pg_root8002
可以看到PITR恢复实例，正确的恢复到了TL2时间线上。
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E5%88%9B%E5%BB%BA%E6%96%B0%E4%B8%BB%E5%BA%93%E4%B9%8B%E5%89%8D%E7%9A%84%E4%BB%8E%E5%BA%931%E7%9A%84%E4%BB%8E%E5%BA%932 创建新主库(之前的从库1)的从库2
创建从库2
pg_basebackup -D /data01/digoal/pg_root8003 -F p -c fast -h 127.0.0.1 -p 8000 -U postgres
postgresql.conf
port = 8003
mv recovery.done recovery.conf
vi recovery.conf
restore_command = 'cp /data01/digoal/wal/%f %p'
recovery_target_timeline = 'latest' # 这一条一定要配置，才会走新时间线
standby_mode = on
primary_conninfo = 'host=localhost port=8000 user=postgres'
启动从库2
pg_ctl start -D /data01/digoal/pg_root8003
查询主库8000
postgres=# select * from pg_stat_replication ;
压测新主库（原从库1）
pgbench -M prepared -n -r -P 1 -c 16 -j 16 -T 120 -h 127.0.0.1 -p 8000
确保新主库的从库同步正常
查询主库8000
postgres=# select * from pg_stat_replication ;
激活新主库的从库(即从库2)
pg_ctl promote -D /data01/digoal/pg_root8003
时间线现在是TL3
压测新主库的从库
pgbench -M prepared -n -r -P 1 -c 16 -j 16 -T 120 -h 127.0.0.1 -p 8003
压测结束后，切换WAL文件，确保PITR使用restore_command可以恢复到最后的WAL
psql -h 127.0.0.1 -p 8003 -U postgres
checkpoint;
select pg_switch_wal();
checkpoint;
select pg_switch_wal();
检查PITR恢复实例，是否恢复到了新新主库（即老的从库2）
digoal@pg11-test-> psql -h 127.0.0.1 -p 8003
psql (11.1)
Type "help" for help.
postgres=# select count(*) from pgbench_history ;
count
---------
9319998
(1 row)
postgres=# \q
digoal@pg11-test-> psql -h 127.0.0.1 -p 8002
psql (11.1)
Type "help" for help.
postgres=# select count(*) from pgbench_history ;
count
---------
9319998
(1 row)
完全一致
查看TL，也已经到3了。
digoal@pg11-test-> pg_controldata -D /data01/digoal/pg_root8002|grep -i timeline
Latest checkpoint's TimeLineID: 2
Latest checkpoint's PrevTimeLineID: 2
Min recovery ending loc's timeline: 3
digoal@pg11-test-> pg_controldata -D /data01/digoal/pg_root8003|grep -i timeline
Latest checkpoint's TimeLineID: 3
Latest checkpoint's PrevTimeLineID: 3
Min recovery ending loc's timeline: 0
PITR实例，做完检查点就打通了
digoal@pg11-test-> psql -h 127.0.0.1 -p 8002
psql (11.1)
Type "help" for help.
postgres=# checkpoint;
CHECKPOINT
postgres=# \q
digoal@pg11-test-> pg_controldata -D /data01/digoal/pg_root8002|grep -i timeline
Latest checkpoint's TimeLineID: 3
Latest checkpoint's PrevTimeLineID: 3
Min recovery ending loc's timeline: 3
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E5%B0%8F%E7%BB%93 小结
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E5%A6%82%E4%BD%95%E8%AE%A9pitr%E5%AE%9E%E4%BE%8B%E5%8F%AF%E4%BB%A5%E4%B8%80%E7%9B%B4%E8%B7%9F%E5%88%B0%E6%9C%80%E6%96%B0%E6%97%B6%E9%97%B4%E7%BA%BF 如何让PITR实例可以一直跟到最新时间线
1、recovery.conf 使用restore command , 不要使用 stream
2、激活后，尽快归档history文件。
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E4%BB%80%E4%B9%88%E6%83%85%E5%86%B5%E4%B8%8B%E4%BC%9A%E8%B5%B0%E9%94%99%E6%97%B6%E9%97%B4%E7%BA%BF
https://github.com/digoal/blog/blob/master/201901/20190120_03.md#%E5%A6%82%E6%9E%9C%E5%B0%B1%E5%8F%AA%E6%83%B3%E6%81%A2%E5%A4%8D%E5%88%B0%E8%80%81%E6%97%B6%E9%97%B4%E7%BA%BF%E6%80%8E%E4%B9%88%E5%81%9A 如果就只想恢复到老时间线怎么做？
配置recovery_target_timeline即可。
